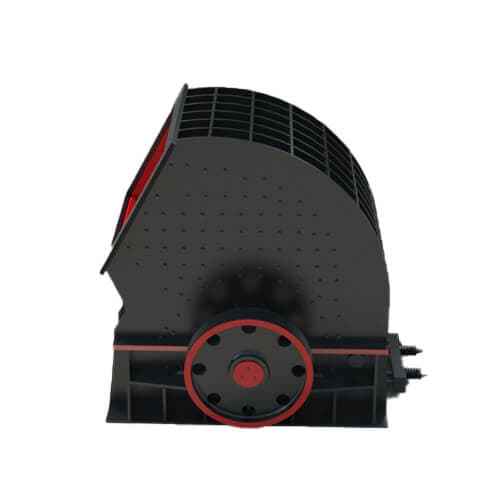

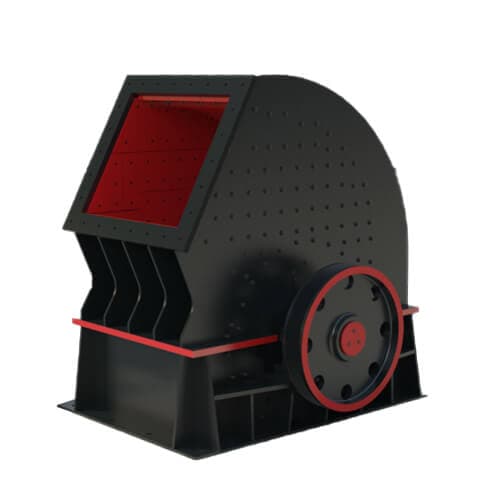

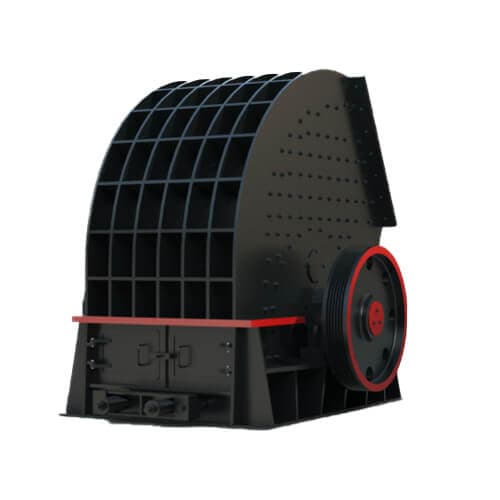

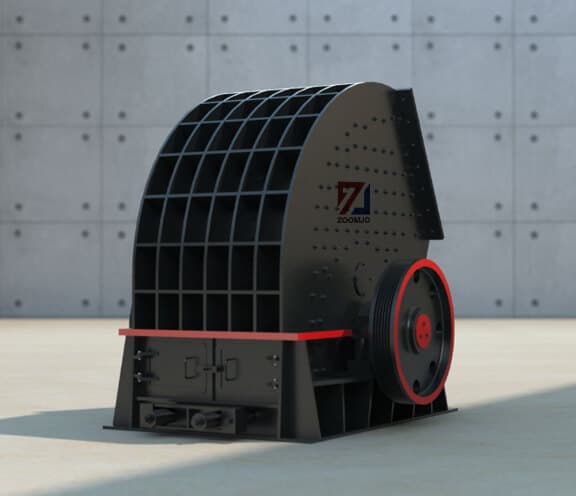

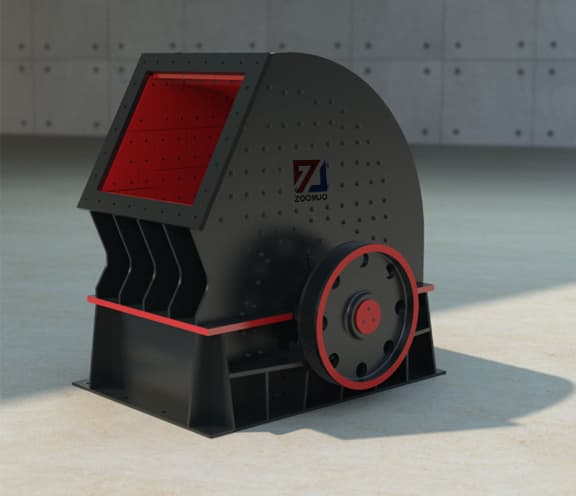

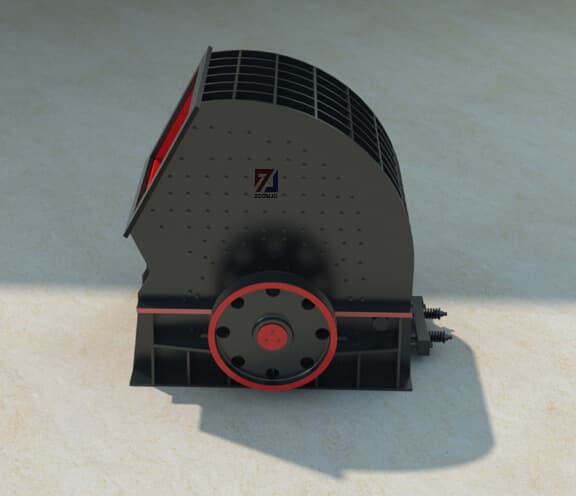

Heavy Hammer Crusher

Model: Heavy Hammer Crusher

Heavy hammer crusher is one of the advanced crushing equipment; it is used to crush stones to be final products at a time. But the heavy hammer crusher cannot suitable for all the stones; it can just be applicable to limestone, dolomite, bluestone, coal, gangue and other stones whose hardness is below 200MPa

Motor power

132kw-315*2kw

Feeding size

≤1200mm

Capacity

100-800t/h

Material:

limestone, dolomite, bluestone, coal, gangue and other stones whose hardness is below 200MPa

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

Heavy hammer crusher is a new type crusher designed on the basis of PC of PC series crusher ,according to users’ Feedback information and crushing industry development development dynamic and combining our company experimental data.Compared with other hammer crushes,use alloy composite hammer head and have high abrasion performance of hammer,large rotation inertia and high rotor kinetic energy.It has large feeding granularity,high crushing ratio,and low maintenance costs and other features.50t/h-5000t/h hammer crusher make this crusher become the preferred device in the crushing industry.

ADVANTAGE

This heavy hammer crusher has features high yield,low energy consumption,simple structure and easy maintenance.

Compared with the same output capacity jaw crusher,this machine can reduce the investment in equipment,has less investment and quick effect.

This machine adopts no grid section design,for wet materials,raw materials containing more earth ,eliminate block and adhesion.

This machine uses alloy composite hammer head,reduce the wear parts consumption,reduce about 35% production cost.

WORKING PRINCIPLE

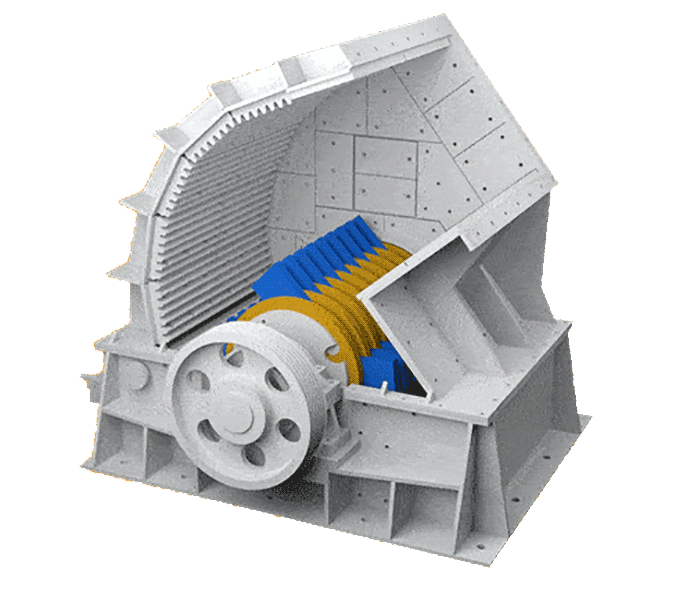

The motor drives the rotor rotates of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Types	Rotor Diameters*length (mm)	Mouth size W*L (mm)	Feeding size (mm)	Capacity (t/h)	Motor power (KW)	Theoretical weight (t)	Dimensions LWH (mm)
PCZ1308	1310*790	850*800	≤ 600	100-160	132	11.2	281821002390
PCZ1510	1500*950	1000*900	≤ 700	160-210	132*2	17.1	326037022750
PCZ1512	1500*160	1210*900	≤ 750	250-320	160*2	18.9	326025802750
PCZ1615	1650*1452	1500*1200	≤ 1000	360-420	200*2	28	345629153185
PCZ1620	1660*1900	2000*1300	≤ 1200	500-800	315*2	46	350031003200
