Home > Product > Mobile Jaw crushing plant

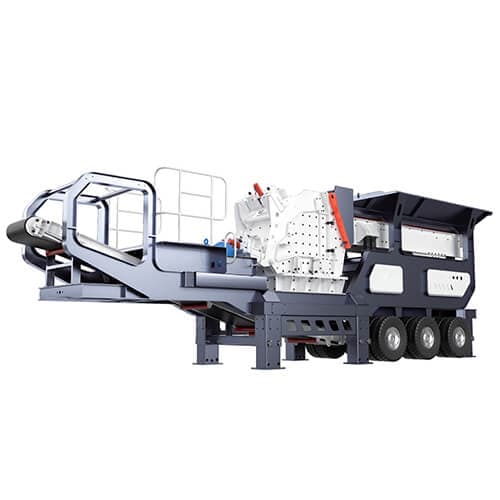

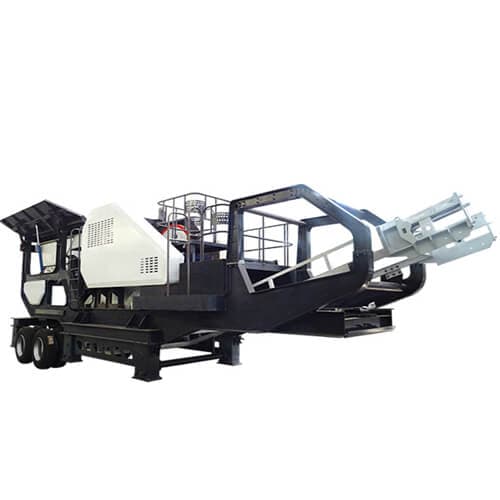

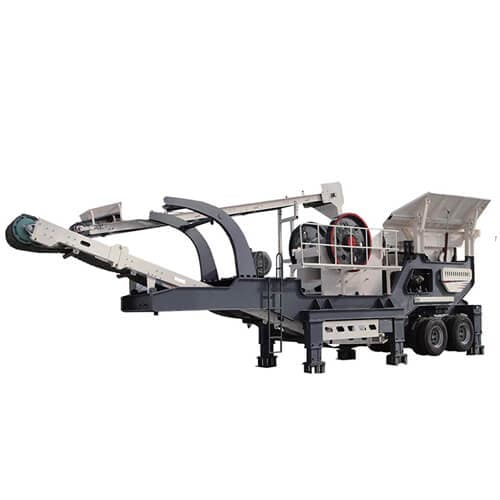

Mobile Jaw crushing plant
Model: Tyre mobile Jaw crushing plant
The mobile jaw crusher is equipped with a high-performance mobile jaw crusher. It is mainly suitable for the recycling and reuse of mines, coal mines, garbage and construction waste, earthwork engineering, urban infrastructure, roads or construction sites and other site operations.
Capacity
50-500 tph
Discharging size
≤1200mm
Input size
0-30 mm
Material:

Coal, crushed lime, limestone, sand, quartz sand,aggregates, cement, fertilizer, woodchips etc.

Email:info@zoomjo.com
PRODUCT INTRODUCTION

Short length, light weight; strong maneuverability and strong adaptability, reducing material transportation costs and flexible combination - no matter coarse crushing, fine crushing or sand making operations, the design concept is to be more suitable for various situations of mobile crushing, reducing crushing site, environment, The basic configuration is an obstacle to customers' crushing operations, and it truly provides customers with simple, efficient and low-cost rock crushing equipment. The operation of mobile stone materials such as railways and hydropower projects.

ADVANTAGE

YPGE series high performance crusher

Vehicle-mounted feeder, vibrating screen, belt conveyor

Traction steering shaft, convenient for road transportation

Vehicle-mounted installation support and on-site installation of equipment are fast and convenient

WORKING PRINCIPLE

The material is evenly transported into the crusher by the feeder. After the initial crushing of the jaw crusher, a closed-circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material. The finished material is output by the conveyor for continuous crushing operation.

Production Line Solution
Calcite
solution
Weathered fossil
solution
Limestone
solution
Dolomite
solution
Granite
solution
River Pebble
solution
Basalts
solution
Sand buns
solution
Processing Materials According to the material you process, we can customize the solution
CHAT ONLINE
100T/H Pebble Production Line
TECHNICAL PARAMETER

Model

YPGE0750

YPGE0960

YPGE1175

YPGE13108

Hopper

Integrates steel structure

Foldable steel structure

Feeder

GZT0724

GZT0932

GZT1148

ZSW6013

Jaw crusher

PE500X750

PE600X900

PE750X1060

PEW1208

Max feed size(mm)

425

500

630

750

Discharge mouth adjusting range

50-100

65-180

80-180

100-275

Capacity(t/h)

50-80

75-120

150-250

200-350

Discharge conveyor

B800

B800

B1000

B1400

Side conveyor belt

B500

B500

B500

B650

Hydraulic system

YZ10

YZ10

YZ30

YZ40

Power(kw)

73.3

77

139

206.5

Frame configuration

Double axles

Double axles

Three axles

Three axles
