Granite, marble, basalt, limestone, gravel, aggregate, coal, quartz, pebble, river stone, copper ore, gole ore, iron ore, etc.

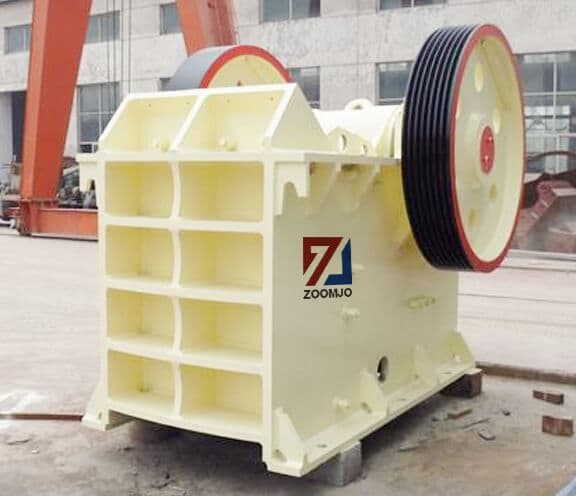

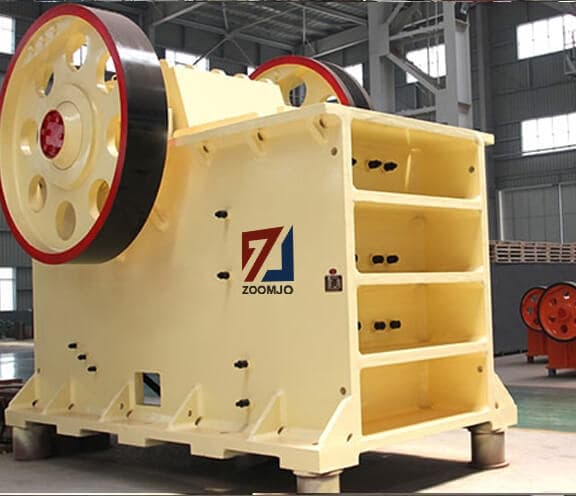

Jaw crusher is a kind of mining equipment and one of the most wide application of crushers in the world.The shape of crusher looks like a jaw of the animal, that's why we call it "jaw crusher".Many industries use the machine for primary and secondary crushing Jaw crusher is suitable for limestone, fly ash, coal powder, slag clay and other brittle materials.It also suitable to crush ores and rocks with medium hardness and above medium hardness. Wide application for a variety of industries , such as metallurgy, mine industry, chemical, building materials, electrical power, transport industry and so on.
Simple structure, easy maintenance;
High crushing ratio, even output granularity;
High reliability, low investment;
Low noise, less dust.
The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
CHAT ONLINE
Model | Feed Opening Size (inch) | Feed Opening Size (mm) | Max. Feeding Size (mm) | Adjustable Range of Discharge Opening (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) | Overall Dimension (mm) |
PE250×400 | 10x16 | 250×400 | 200 | 20-50 | 5-20 | 15 | 2.9 | 1430×1310×1340 |
PE400×600 | 16x24 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 6.8 | 1700×1732×1653 |
PE500×750 | 20x30 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 11.2 | 2035×1921×2000 |
PE600×900 | 24x36 | 600×900 | 500 | 65-160 | 60-140 | 55-75 | 16.5 | 2290×2206×2370 |
PE750×1060 | 30x42 | 750×1060 | 630 | 80-150 | 90-230 | 90-110 | 29 | 2655×2302×3110 |
PE900×1200 | 36x48 | 900×1200 | 750 | 95-165 | 150-350 | 110-132 | 54.5 | 3789×3050×3025 |
PE1000×1200 | 46x48 | 1000×1200 | 850 | 105-185 | 180-400 | 132-160 | 56.5 | 3900×3320×3280 |
PE1200×1500 | 48x60 | 1200×1500 | 1020 | 150-300 | 400-800 | 220-250 | 99.6 | 4300×3540×4043 |
PEX150×250 | 6x10 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.85 | 896×745×935 |
PEX150×750 | 6x30 | 150×750 | 125 | 12-45 | 5-16 | 15 | 3.8 | 1205×1495×1203 |
PEX250×750 | 10x30 | 250×750 | 210 | 25-60 | 10-40 | 22-30 | 5 | 1667×1545×1020 |
PEX250×1000 | 10x40 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 6.8 | 1964×1550×1380 |
PEX250×1200 | 10x48 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192×1605×1415 |
PEX400×1200 | 16x48 | 400×1200 | 320 | 35-95 | 28-95 | 45-55 | 11.7 | 2256×2100×1960 |
