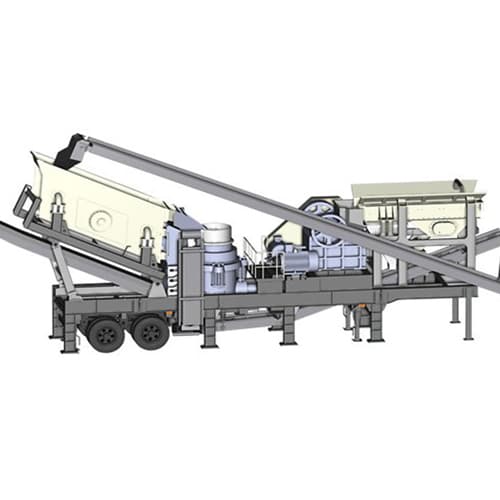

Four combination mobile crusher
Model: Tyre mobile four combination crushing plant
The four-combination mobile crushing station integrates coarse crushing, medium crushing and fine crushing. It can complete the operation independently without other equipment. It is economical, applicable, simple and efficient, and is suitable for small and medium-sized production scales.
Capacity
30-180t/h
Input size
≤350*≤500mm
Overall size
12500 x 2500 x 4500mm
Material:

Pebble, limestone, granite, diabase, basalt, andesite, etc

Email:info@zoomjo.com
PRODUCT INTRODUCTION

Four-combination mobile crushing station can provide primary crushing jaw crusher according to customer's requirements of feeding granularity and discharging granularity, and secondary crushing is equipped with cone crusher and impact crusher and other models to choose from, which can be flexibly configured according to customer needs .

ADVANTAGE

Crusher integration

Easy to transport by road

Low cost of material transportation

Personalized needs

WORKING PRINCIPLE

Four-combination mobile crushing station, the material is pre-selected by the feeder, crushed by the primary crushing and secondary crushing crusher, and then forms a closed-circuit system through the vibrating screen to realize the cyclic crushing of the material, which can effectively reduce the crushing process. Conveyor output for continuous crushing operation. The exchange system of different models of feeding unit, crushing unit and screening unit is realized on the same body, and the matching between the systems of the whole machine is suitable for a wider range of occasions and has a stronger crushing function.

Production Line Solution
Calcite
solution
Weathered fossil
solution
Limestone
solution
Dolomite
solution
Granite
solution
River Pebble
solution
Basalts
solution
Sand buns
solution
Processing Materials According to the material you process, we can customize the solution
CHAT ONLINE
100T/H Pebble Production Line
TECHNICAL PARAMETER

Model

Corollary equipment

Corollary equipment

Overall size(mm)



Model

Input size(mm)

Capacity(t/h)

S-E46-PF1007

3YZK1237

PE400×600

≤350

30-50

12500 x 2500 x 4500

GZD650×2300

PF1007

S-E57-PF1010

3YZK1545

PE500×750

≤425

50-100

13000 x 2500 x 4500

ZSW850×3000

PF1010

S-E69-PF1214

3YZK1848

PE600×900

≤500

100-180

15800 x 2550 x 4500

ZSW9638

PF1214

S-E57-Q300

3YZK1545

PE500×750

≤425

50-100

13000 x 2500 x 4500

ZSW850×3000

HP200

S-E69-Q400

3YZK1860

PE600X900

≤500

100-180

15800 x 2550 x 4500

ZSW960 x 3800

HP300

APPLICATION SCENARIO
Mines and Quarries
Cement Production
Road Construction
Building Construction
