Coal, crushed lime, limestone, sand, quartz sand,aggregates, cement, fertilizer, woodchips etc.
Short length, light weight; strong maneuverability and strong adaptability, reducing material transportation costs and flexible combination - no matter coarse crushing, fine crushing or sand making operations, the design concept is to be more suitable for various situations of mobile crushing, reducing crushing site, environment, The basic configuration is an obstacle to customers' crushing operations, and it truly provides customers with simple, efficient and low-cost rock crushing equipment. The operation of mobile stone materials such as railways and hydropower projects.

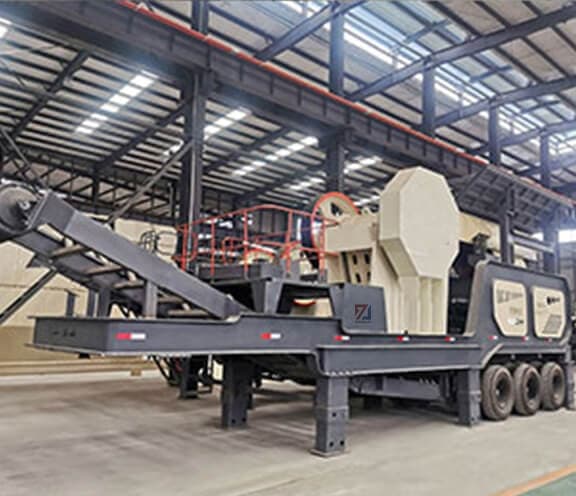

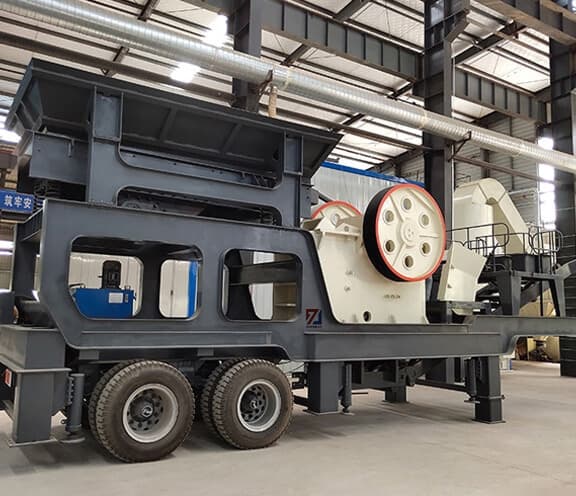

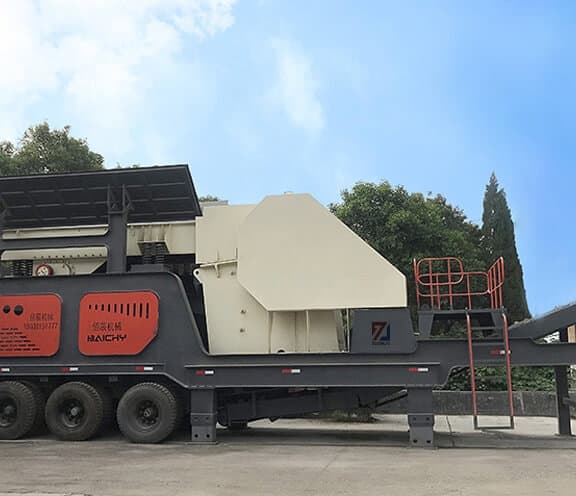

YPGE series high performance crusher
Vehicle-mounted feeder, vibrating screen, belt conveyor
Traction steering shaft, convenient for road transportation
Vehicle-mounted installation support and on-site installation of equipment are fast and convenient
The material is evenly transported into the crusher by the feeder. After the initial crushing of the jaw crusher, a closed-circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material. The finished material is output by the conveyor for continuous crushing operation.
Model | YPGE0750 | YPGE0960 | YPGE1175 | YPGE13108 |
Hopper | Integrates steel structure | Foldable steel structure | ||
Feeder | GZT0724 | GZT0932 | GZT1148 | ZSW6013 |
Jaw crusher | PE500X750 | PE600X900 | PE750X1060 | PEW1208 |
Max feed size(mm) | 425 | 500 | 630 | 750 |
50-100 | 65-180 | 80-180 | 100-275 | |
Capacity(t/h) | 50-80 | 75-120 | 150-250 | 200-350 |
Discharge conveyor | B800 | B800 | B1000 | B1400 |
Side conveyor belt | B500 | B500 | B500 | B650 |
Hydraulic system | YZ10 | YZ10 | YZ30 | YZ40 |
Power(kw) | 73.3 | 77 | 139 | 206.5 |
Frame configuration | Double axles | Double axles | Three axles | Three axles |
