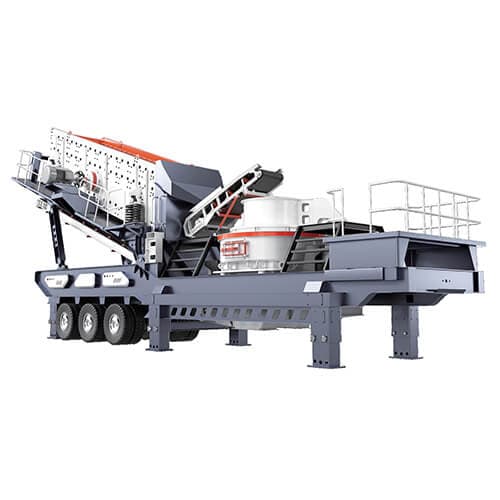

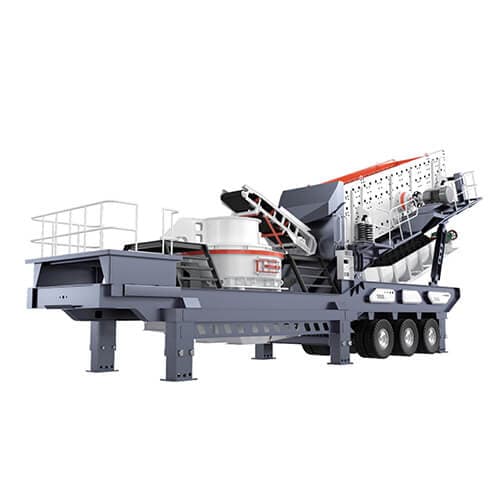

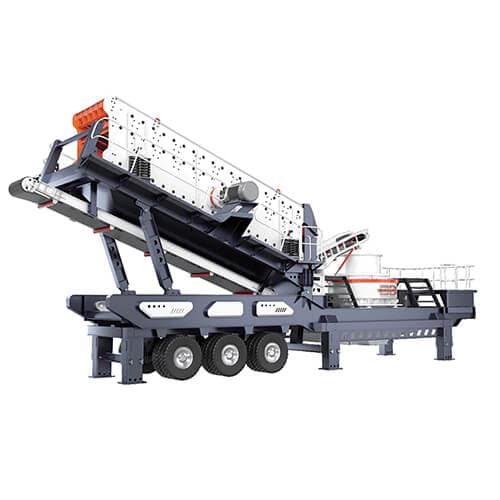

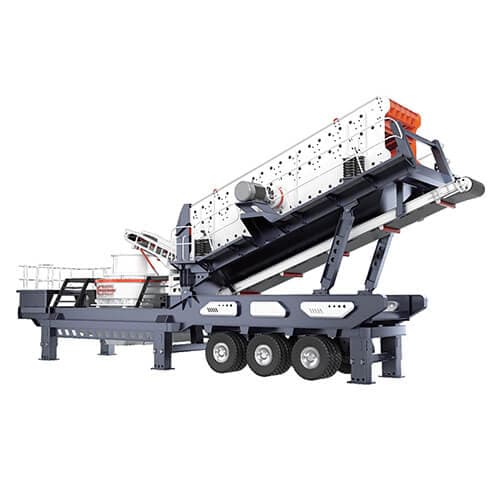

Mobile sand making crusher

Model: Tyre mobile Sand making&crushing plant

Mobile crusher, also known as mobile crushing station, vehicle-mounted stone crusher, etc., is mainly used for crushing sand making, vehicle-mounted walking, free movement, and is suitable for various terrain operations.

Power

186.5-372.5kw

Capacity

80-300th

Max feed size

45-55mm

Material:

River pebbles, mountain stones (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, etc.

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

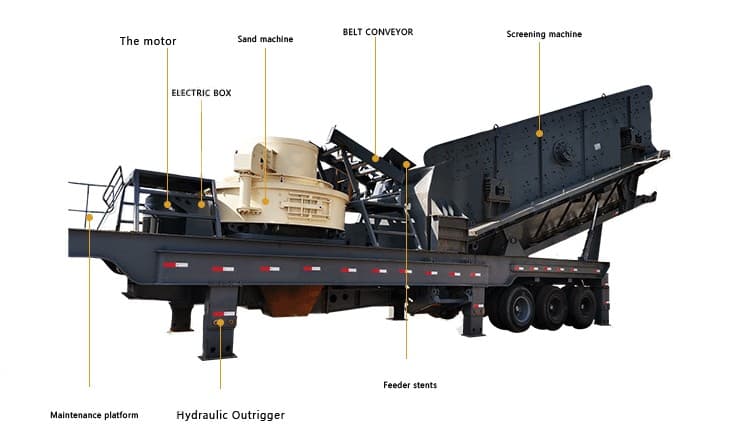

The main equipment of the mobile sand making machine is the impact sand making machine. It is widely used in the sand and gravel aggregate production industry. Its design structure is reasonable, the efficiency is high, and it is equipped with a high-strength vibrating screen. Strong mobility, strong adaptability, reduce material transportation costs, flexible combination - coarse crushing, fine crushing or sand making operations can be operated.

ADVANTAGE

The whole set of equipment is combined according to the production line configuration scheme, which can realize multiple uses of one machine.

The mobile sand making machine has various functions such as feeding, screening, crushing and sand making.

The generator set is randomly configured to prevent the occurrence of sudden power failure and ensure the stable operation of the equipment.

The fuselage structure is reasonable, and the modules are compactly matched, and the requirements for road transportation and production sites are relatively low.

WORKING PRINCIPLE

The materials that need to be sanded are evenly transported to the vertical impact crusher through the vibrating screen. After being crushed by the impact crusher, the materials that meet the crushing requirements are output, and the materials that do not meet the requirements enter the impact crusher again for crushing. The mobile sand making production line forms a closed-circuit system through a circular vibrating screen and an impact crusher to realize the cyclic crushing of materials, and the finished materials are output by the conveyor for continuous crushing operations.

mobile sand making crusher.jpg

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Model	YPFS0715	YPFS0818	YPFS1121
Vibrating Screen	3YA1548	3YA1860	3YA2160
Vertical crusher	VSI8516	VSI9525	VSI1132
Max feed size(mm)	45	50	55
Capacity(t/h)	80-150	120-250	180-300
Conveyor belt under vibrating screen	B650	B800	B1200
Hydralic system	YZ20	YZ20	YZ30
Power	186.5	287	372.5
Frame configuration	Double axles	Double axles	Three axles
