Suitable for all kinds of quarries and screening construction demolition waste, mining operations, etc.

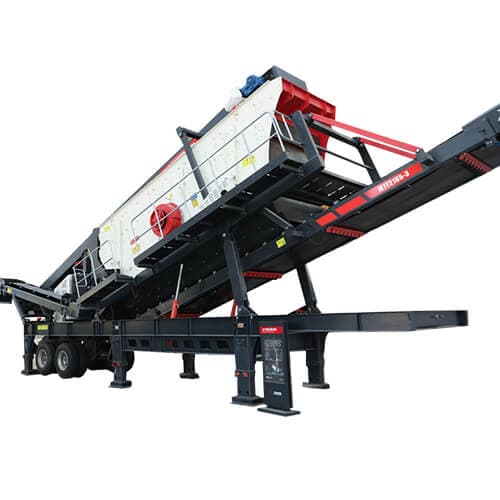

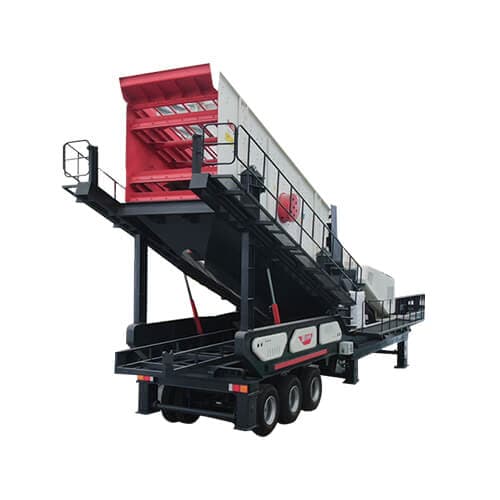

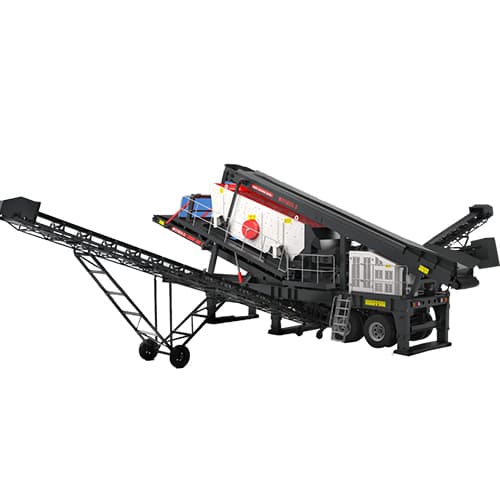

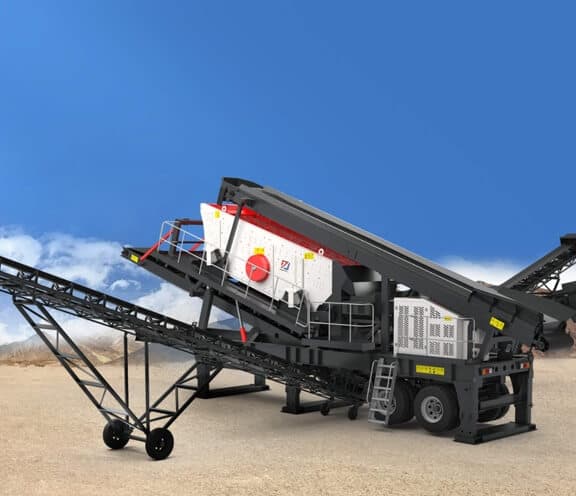

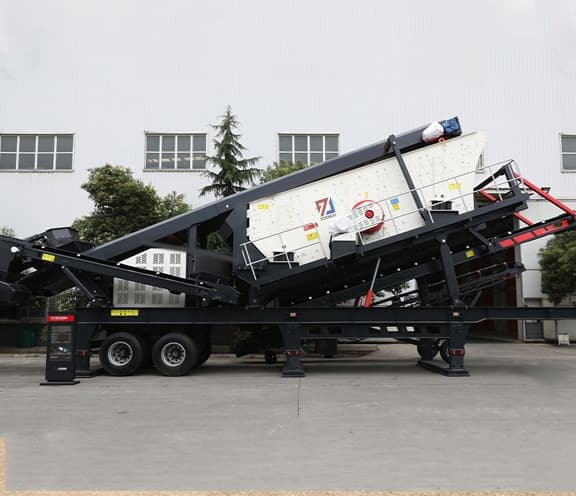

The mobile screening station is a high-efficiency screening equipment with advanced technology and complete functions. This device can reach any location on the work site in any terrain. This reduces material handling operations and facilitates coordination of all auxiliary machinery. By manoeuvring, the screening machine can be easily driven onto a trailer and transported to the job site. Because no assembly time is required, the equipment can be put to work as soon as it arrives at the job site.
High performance vibrating screen.
Vehicle-mounted motor and control box are integrated.
Equipment-integrated in-vehicle installation.
Vehicle-mounted installation support, fast and convenient equipment site stationing.

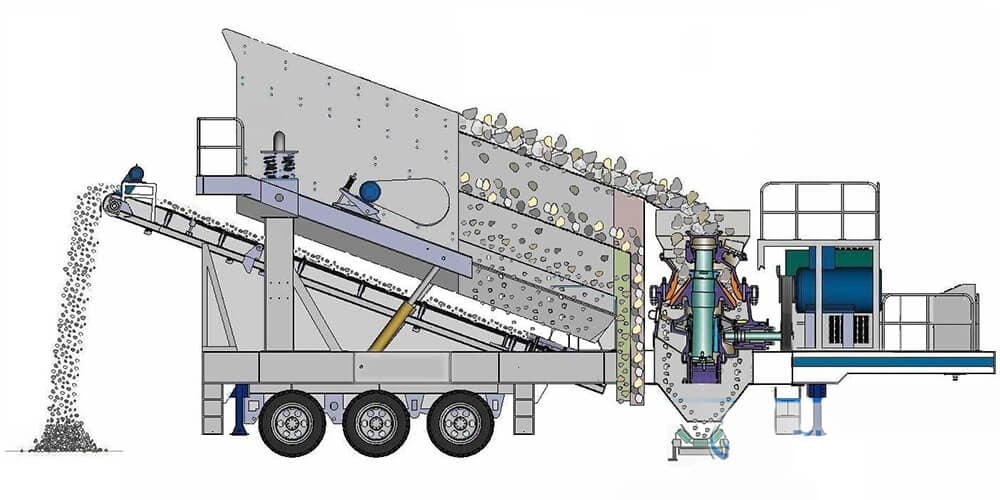

The mobile heavy-duty screening station is to screen large materials. The aggregate is transmitted through the crushing station to the feeding belt and conveyed to the screening system. The vibration motor vibrates at a high speed, so that the aggregate can be accurately screened through the three-layer screen. The expected ideal qualified material. Corresponding to three conveyor belts, they are transported out from the conveyor belt ports respectively, so as to achieve a sort of aggregate, and stack the aggregate of the same material type.
Screening plant | |||||||||||
Model | Vibrating Screen | Feeding conveyor | Back conveyor | Conveyor under Screen | Discharge height | Discharge conveyor belt A | Discharging conveyor belt B | Discharging height | Hydraulic system | Frame configuration | Power (kw) |
YPCF150 | 3YA1548 | B650 | B500 | B650 | 3.8 | B500 | B500 | 3 | YZ20 | Double axles | 37.5 |
YPCF200 | 3YA1860 | B800 | B650 | B800 | 4.2 | B500 | B500 | 3 | YZ20 | 50 | |
YPCF260 | 3YA2160 | B1200 | B650 | B1200 | 4.2 | B500 | B500 | 3 | YZ30 | 72.5 |
Model | HX3S1848 | HX3S1860 | HX3S2160 |
Transportation length(mm) | 10280 | 11480 | 11480 |
Transportation width(mm) | 2830 | 2830 | 3150 |
Transportation height(mm) | 4350 | 4350 | 4350 |
Max length(mm) | 11100 | 11800 | 11800 |
Max width(mm) | 3600 | 3600 | 3970 |
Max height(mm) | 6000 | 6000 | 6500 |
Weight(t) | 16 | 18 | 19 |
Tire configuration | Parallel installation of double shafts | Parallel installation of double shafts | Parallel installation of double shafts |
Vibrating screen model | 3YZS1848 | 3YZS1860 | 3YZS2160 |
