European Jaw Crusher
Model: C series Jaw Crusher
European Version Jaw Crusher is a new generation of high-efficiency jaw crusher developed by our company. It has a new design concept, structural upgrade,and has the advantages of large crushing ratio and high.
Max feed size
380-1300mm
Motor power
45-335kw
Production
35-1200t/h
Material:

Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore

Email:info@zoomjo.com
PRODUCT INTRODUCTION

European Version Jaw Crusher with Hydraulic Closed side setting. Can easily, quickly and precisely make the CSS adjustment.The fabricated frame with annealing treatment , making the machine sturdy and durable. This machine has a large and deep crushing cavity, and the designed crushing angle is an acute angle, so a very large crushing ratio can be achieved.

ADVANTAGE

High ratio of crushing,Easy maintenance

Homogeneous final grain size

Simple structure,Low operating cost

Reliable working condition.

WORKING PRINCIPLE

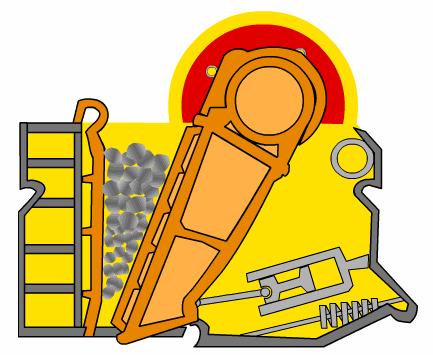

The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

Production Line Solution
Calcite
solution
Weathered fossil
solution
Limestone
solution
Dolomite
solution
Granite
solution
River Pebble
solution
Basalts
solution
Sand buns
solution
Processing Materials According to the material you process, we can customize the solution
CHAT ONLINE
100T/H Pebble Production Line
TECHNICAL PARAMETER

Model

Inlet size(mm)

Maximum feed size(mm)

Outlet size(mm)

Processing capacity(t/h)

Motor(KW)

C100

630×1000

580

80-180

110-230

90

C110

870×1100

720

85-220

160-380

110

C130

1100×1300

960

120-260

260-680

185

C145

1100×1450

1080

130-275

320-950

220

C160

1200×1600

1180

165-320

550-1100

250

C200

1500×2000

1200

175-320

760-1375

400


APPLICATION SCENARIO
Mines and Quarries
Cement Production
Road Construction
Building Construction
