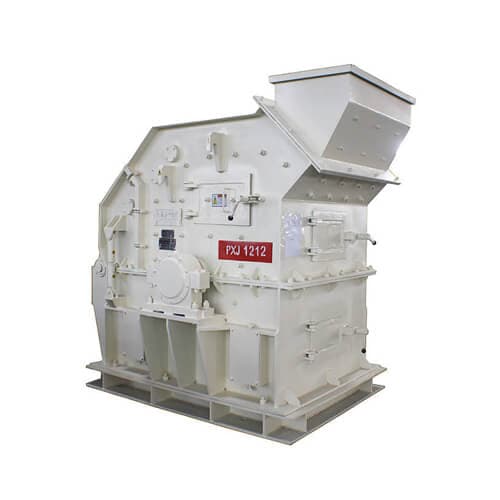

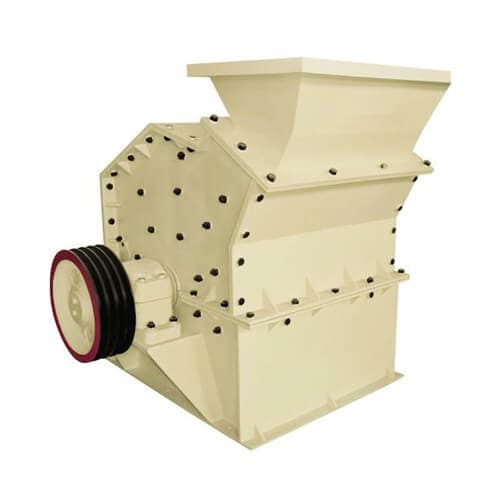

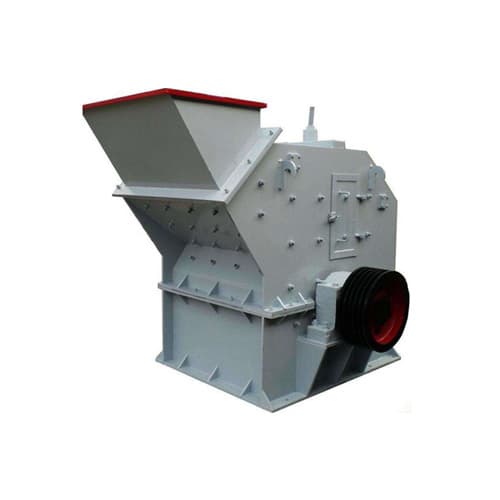

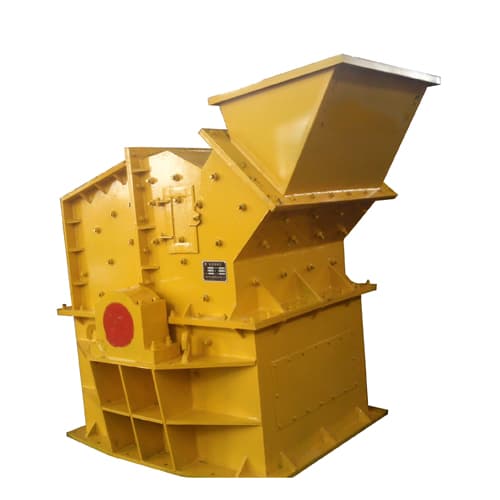

Fine Crusher

Model: Heavy Efficient Fine Crusher

The fine crusher is a combination of the national mechanism sand standard and the user’s requirements and the degree of sand approval. A new type of sand making equipment is divided into mechanical and hydraulic models,which are suitable for low-investment,short-term and other types of customers.

Feed size

＜190mm

Discharge gap adjustment

5-20mm

Power

30-315kw

Material:

dolomite,platinum,gangue calcite,calcium ore,manganese ore,cobalt ore,granite

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

Fine crusher is a new type sand making equipment in combination with national mechanism sand standard,users’ requirement and recognition of the sand,it is suitable for low investment,short-term high efficiency and other types customers. Fine crusher is mainly suitable for artificial sand industry,and rock crushing with not too high hardness,can also be used for secondary crushing in mining,chemical industry,etc.Small product size,less dust,grain uniformity,high production capacity,hammer with long service life,small power needed,changing third crushing into second crushing,simple structure,smooth operation,easy to maintain and so on.

ADVANTAGE

Small feed-out granularity

Uniform particle-type uniform

Large capacity

Long life hammerhead

WORKING PRINCIPLE

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet.

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

PCX Crusher	Model	Feed opening size (mm)	Feed size(mm)	Discharge port size(mm)	Discharge gap adjustment (mm)	Cement clinker(t/h)	Lime stone(t/h)	Power(kw)
Rotor width(mm)	800×400	400×185	＜120	＜5	5-20	20-30	35-45	37-45
	800×600	500×250	＜180	＜5	5-20	35-40	45-55	45-55
	800×800	550×330	＜180	＜5	5-20	35-45	58-65	45-55
	1010×1010	1000×350	＜180	＜5	5-20	45-55	65-75	55-75
	1200×1000	1200×400	＜180	＜5	5-20	80-110	60-100	90-110
	1200×1200	1200×450	＜180	＜5	5-20	100-110	90-100	110-132
	1400×1400	1500×500	＜190	＜5	5-20	100-150	100-150	160
	1200×1200	1600×550	＜190	＜5	5-20	170-210	190-250	250
	1200×1200	1800×800	＜190	＜5	5-20	250-270	280-310	315
