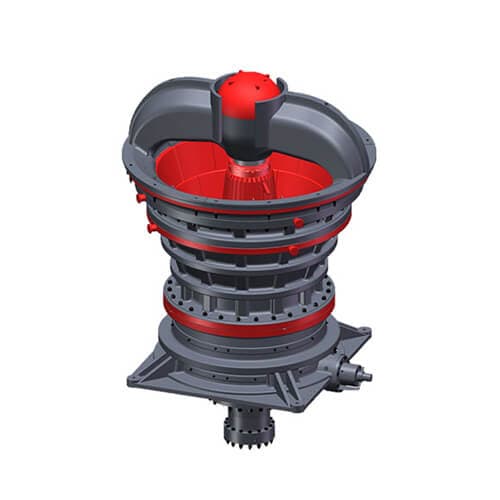

Gyratory crusher

Model: Hydralic gyratory crusher

Hydralic gyratory crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Zoomjo produces hydraulic gyratory crusher with complete product specifications, advanced design, reliable performance, smooth working and low energy consumption.

Motor power

315-1120kw

Feeding port size

914-1650mm

Nominal discharge

140-200mm

Material:

It is currently widely used in metallurgy ,building materials, chemical and hydropower departments for one of the main equipment for coarse ore or rock .

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

Hydraulic gyratory crusher is the most typical coarse crushing equipment in large and extra large and extra large production capacity, low unit power consumption and stable work. Suit to crush flaky material, the particle size of the crushed product is relatively unifor6m. It is currently widely used in metallurgy, building materials, chemical and hydropower departments for one of the main equipment for coarse ore or rock .

ADVANTAGE

High productivity

Low kinetic energy consumption

Good granularity of finished product

Long service life

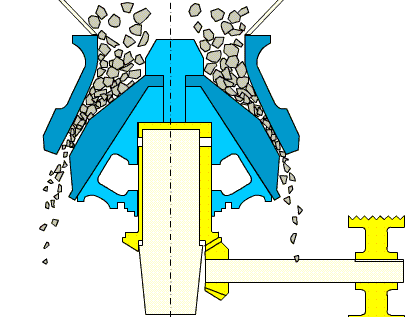

WORKING PRINCIPLE

Hydraulic gyratory crusher, the motor drives the crushing cone to swing around the center line of the crusher through the transmission of the pulley and the bevel gear. It is crushed by extrusion and bending, and the crushed ore is discharged from the bottom of the crushing chamber by its own weight. At any instant, a little material is crushed, and the little material opposite it is discharged downward at the same time, so its work is continuous.

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

model	Feeding port size	Nominal discharge（mm）	Motor power（KW）	Machine weight（t）
ZJPX-D914	914	140	315	130
ZJPX-106.15	1065	150	355	140
ZJPX-1216	1200	160	500	250
ZJPX-137.15	1372	152	400	240
ZJPX-0917	900	170	280	141
ZJPX-1216	1200	160	380	228
ZJPX-1221	1200	210	380	229
ZJPX-1417	1400	170	450	310
ZJPX-1422	1400	220	450	309
ZJPX-1623	1600	230	500	481
ZJPX13.717	1370	170	560	320
ZJPX1417A	1400	170	560	350
ZJPX-1618	1600	180	630	360
ZJPX-1517	1524	170	630	380
ZJPX-1619	1600	190	710	410
ZJPX-1518	1524	180	800	486
ZJPX-1519	1524	190	900	580
ZJPX-1520	1524	200	1000	600
ZJPX-1720	1650	200	1120	730
