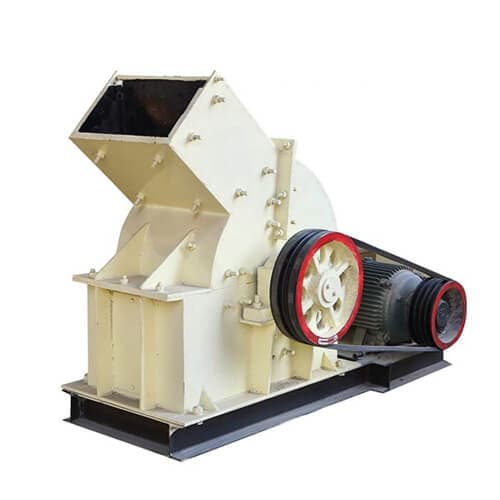

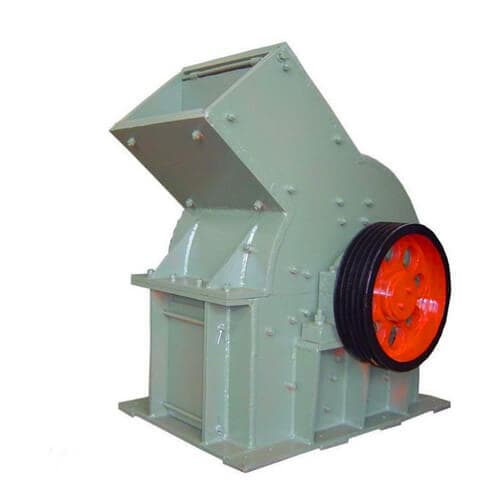

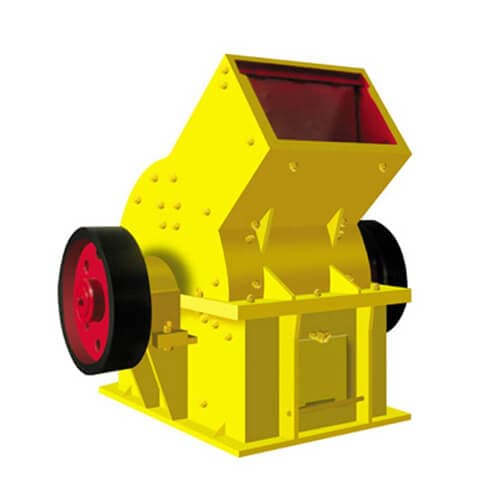

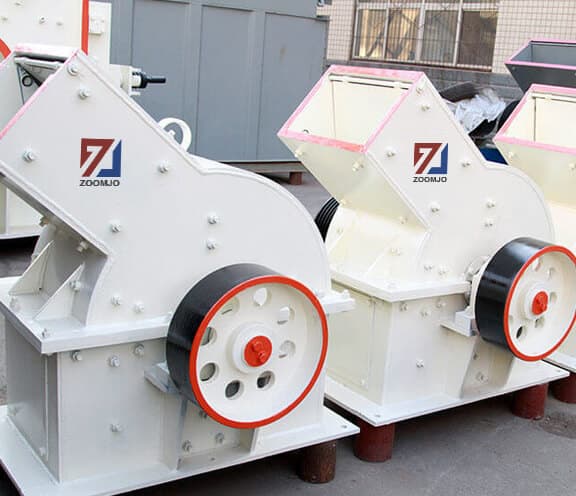

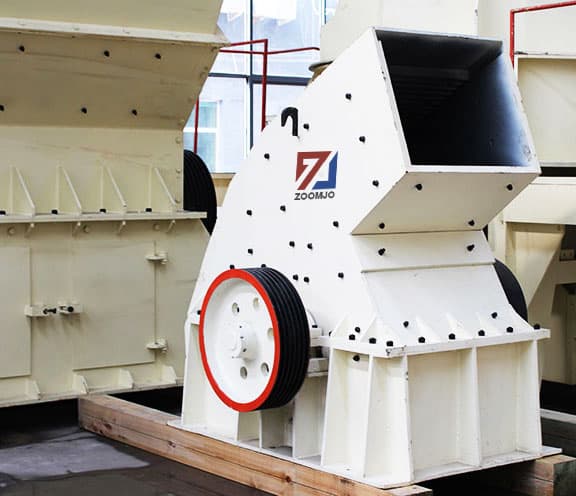

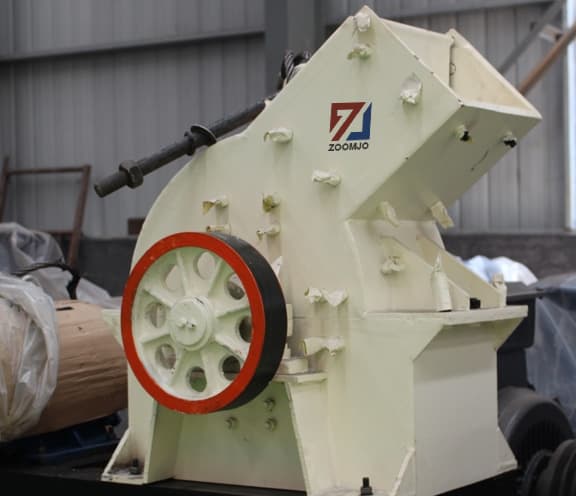

Hammer Crusher

Model: Hammer Crusher

The crusher can crush medium-hard and crispy materials,such as line stone and coal with compression resistance less than 150kg/cm² in the fields of cement,mining,coal,electricity,chemical industry etc.

Motor power

7.5-450kw

Discharging size

0-60mm

Capacity

5-280t/h

Material:

Hammer crusher for crushing all kinds of hard and abrasive weak variety of brittle materials. The compressive strength of the material does not exceed 100MPa, moisture content less than 15%.

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

Hammer crusher is suitable for crushing medium-hardness materials such as limestone, slag, coke, coal and so on in cement, chemical, electric power, metallurgy and other industrial departments. It has the advantages of simple structure, large crushing ratio and high production efficiency, which can break both dry and wet forms., Hammer Crusher can adjust grate strip gap according to change the size of the material which can meet the different needs of different users.

ADVANTAGE

Small cubic measurement , large reduction ration , low energy consumption;

Even size. Little exceedingly-crushing powder;

Wear resistant hammer heads,longer life,high capacity and easy adjusting of discharging grid plate;

The crushing cavity is deep and no dead area, these structure improve the through put.

WORKING PRINCIPLE

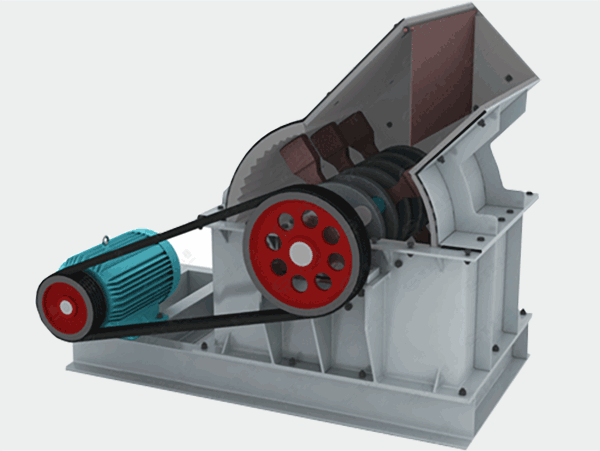

The motor drives the rotor rotates of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Model	Rotor speed (r/min)	Feed opening size (mm)	Max feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Overall dimensions L×W×H (mm)
PC400*400	1500	145×295	100	0-30	44689	7.5	0.9	844942878
PC600*400	1000	295×450	100	0-35	44846	18.5	1.5	100010001300
PC600*600	1000	295×570	100	0-35	44913	45	2.14	13158401501
PC800*600	1000	350×570	120	0-45	20-25	55	2.45	151525861040
PC800*800	1000	350×850	120	0-45	35-45	55	3.05	151528311040
PC1000*800	1000	580×580	200	0-45	25-40	110	6.5	320622101515
PC1000*1000	1000	580×1060	200	0-45	40-80	132	7.59	351422301515
PC1250*800	750	650×850	200	0-45	20-50	132	11.7	263017802050
PC1250*1250	750	650×1330	200	0-45	90-110	185	13.2	263021802050
PC1400*1400	750	1050×1540	250	0-45	120-170	280	17.2	279028002310
PC1600*1600	600	1500×1785	350	0-60	220-280	450	22.8	335031202660
