Iron Remover

Model: Permanent Magnet Iron Remover

The permanent magnet iron remover uses the characteristics of magnets to adsorb iron products to achieve the effect of iron removal within an effective range.

Adaptation Bandwidth

500-2000mm

Material Thickness

80-500mm

Drive Power

1.5~7.5kw

Material:

Coal, crushed lime, limestone, sand, quartz sand,aggregates, cement, fertilizer, woodchips etc.

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

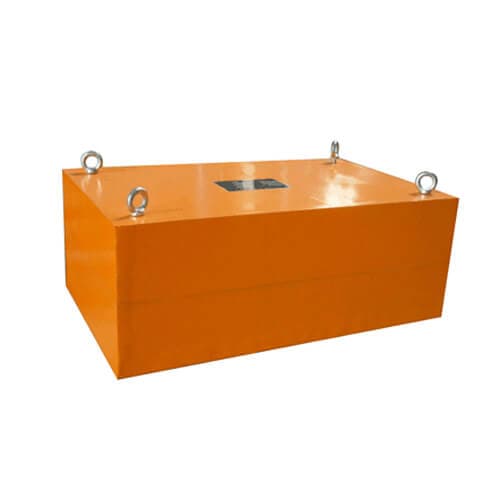

The inside of the permanent magnet iron remover adopts the special permanent magnet "NdFeB" with high coercivity and high remanence to form a composite magnetic system. It is suitable for removing iron from non-magnetic materials on belt conveyors, vibrating conveyors, electromagnetic vibrating feeders, flat iron removers, and unloading chute. Remove 0.1 to 35 kg of ferromagnetic substances, and the internal permanent magnetic system has a service life of more than 10 years. When the permanent magnet adsorbs more ferromagnetic objects, it can be removed manually with a non-magnetic scraper or with gloves, which is suitable for continuous work and occasions with less iron.

ADVANTAGE

Iron remove machine has the advantages of maintenance-free, strong magnetic force, long life, simple installation, convenient use and reliable operation.

Wide Application, full Models, stable performance, low failure rate, low cost

WORKING PRINCIPLE

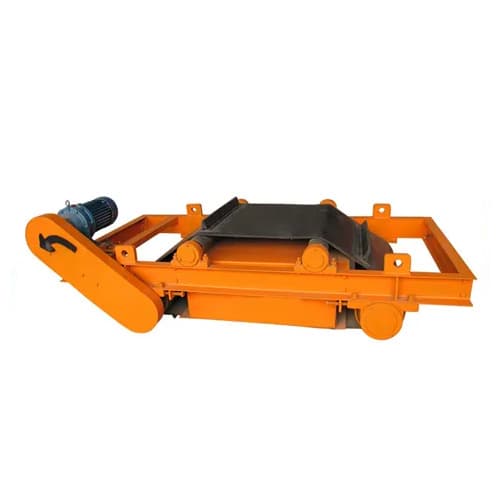

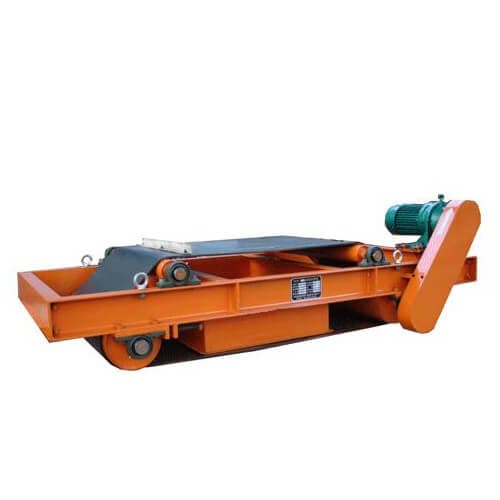

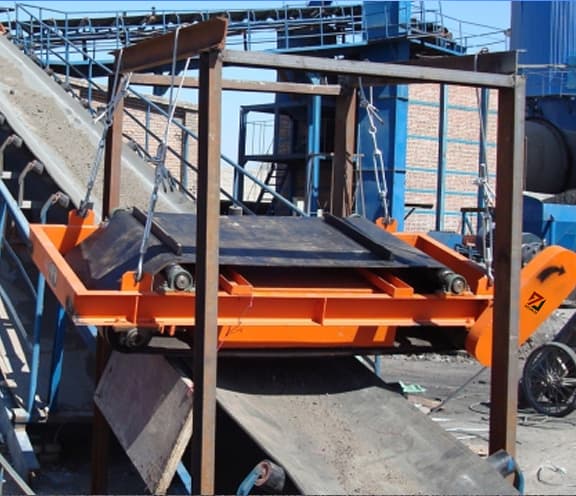

When the granular material passes directly under the permanent magnet self-unloading iron remover, about 0.1-0.36 kg of ferromagnetic impurities mixed in the material will be sucked up. When the magnetic material passes through the non-magnetic area, it will be scraped out by the iron parts on the belt and thrown into the iron collecting box, so as to achieve the purpose of continuous automatic iron removal.

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Model	To adapt to the bandwidth (mm)	Ride height (h≤mm)	The thickness of the material (≤mm)	Magnetic field intensity(≥mT)	Drive power(≤kw)	Weight(kg)
RCYD(C)-5	500	150	80	60	1.5	750
RCYD(C)-6	600	175	120	60	1.5	920
RCYD(C)-6.5	650	200	150	70	1.5	1200
RCYD(C)-8	800	250	200	70	2.2	1400
RCYD(C)-10	1000	300	250	70	3	2120
RCYD(C)-12	1200	350	300	70	4	3350
RCYD(C)-14	1400	400	350	70	4	4450
RCYD(C)-16	1600	450	400	70	5.5	6200
RCYD(C)-18	1800	500	450	72	7.5	8100
RCYD(C)-20	2000	550	500	72	11	9700
