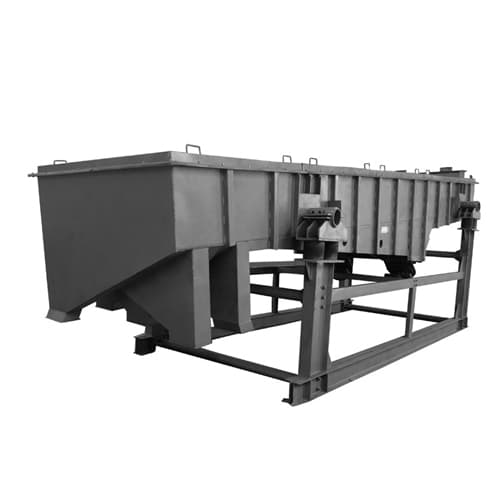

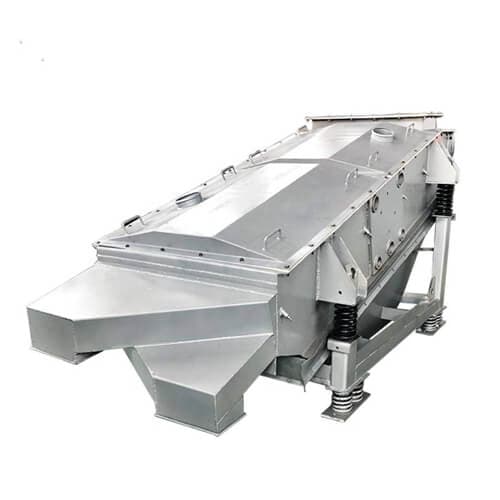

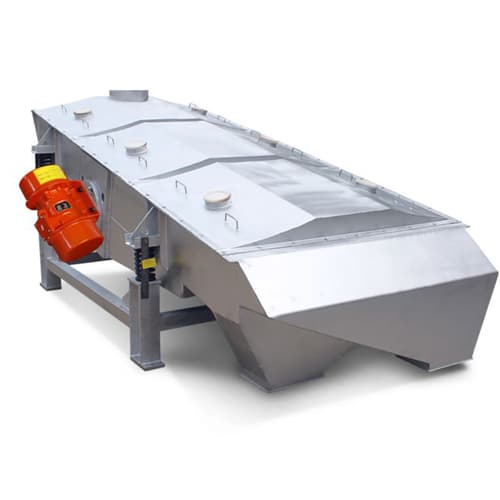

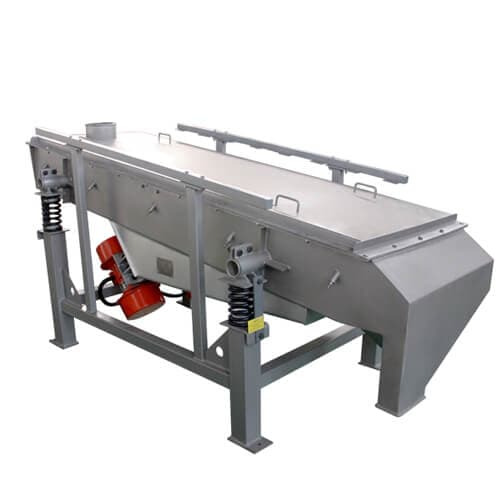

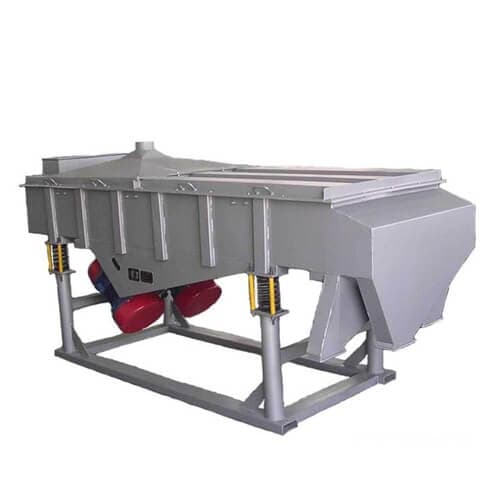

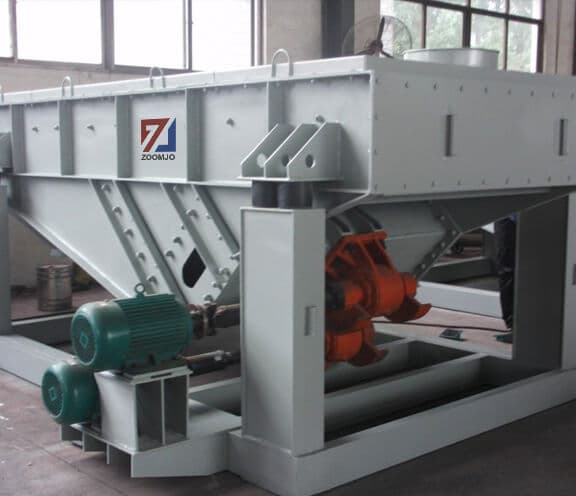

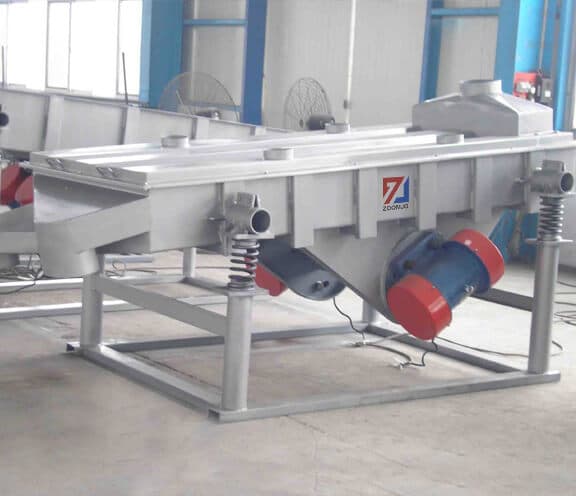

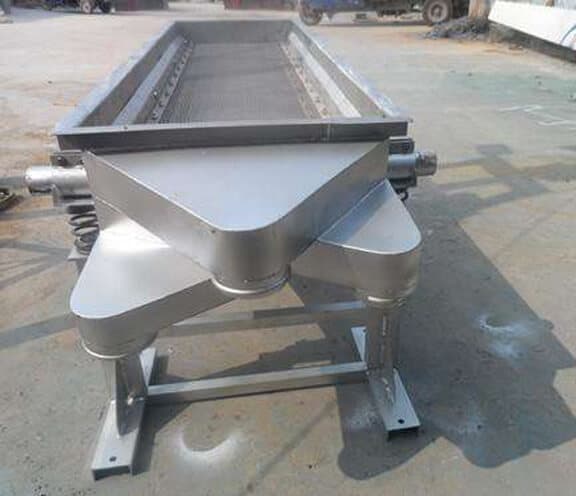

Linear vibrating screen is the new and high efficiency screen equipment, which is widely used in the areas of mine, coal, smelting, building materials, refractory materials, light industry. It has the advantages of stable, lower consumption and noise, long-life endurance, stable vibration, high efficiency screening,etc.
Rapid to replace the mesh, rapid tension.
High efficiency, low noise.
The way that materials are on the screen surface is long, high screen fineness, large handing capacity.
Screen and classify materials, at the same time, transport materials in a long distance.

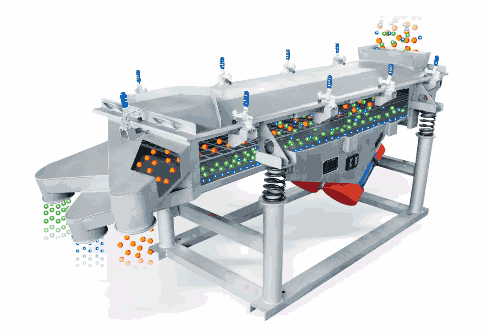

Rotation. Operation of eccentric block generates a lot of centrifugal force, stimulate screen forming certain amplitude circle movement. Materials on the tilted screen surface do continuous throwing movement after receiving the impulse given by sieving box. During the process of collision of materials and sifter, the grain which is less than the screen hole will be chosen so as to realize the grading.
CHAT ONLINE
Model | HZS-520 | HZS- 525 | HZS-530 | HZS- 535 | HZS- 1020 | HZS- 1025 | HZS- 1030 | HZS- 1035 | HZS- 1040 | HZS- 1530 | HZS- 1535 | HZS- 1540 | |
Nominal size (mm) | 500× 2000 | 500× 2500 | 500× 3000 | 500× 3500 | 1000× 2000 | 1000× 2500 | 1000× 3000 | 1000× 3500 | 1000× 4000 | 1500× 3000 | 1500× 3500 | 1500× 4000 | |
Material diameter (mm) | 0.074-10 | ||||||||||||
Vibration time times/min | 960 | ||||||||||||
Screen slope | 1°_7° | ||||||||||||
Vibration amplitude | 3--4.5 | ||||||||||||
Layer number | 1--6 | ||||||||||||
Power(Kw) | 2×(0.4-0.75) | 2×(0.4-1.1) | 2×(0.75-1.5) | 2×(1.1-2.2) | |||||||||
Size | Length | 2740 | 3240 | 3740 | 4240 | 2740 | 3240 | 3740 | 4240 | 4740 | 3740 | 4240 | 4740 |
Width | 870 | 1370 | 1400 | 1900 | |||||||||
Height | 1400 | 1440 | |||||||||||
