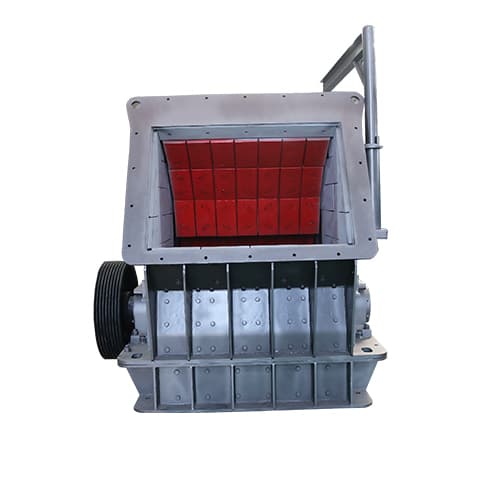

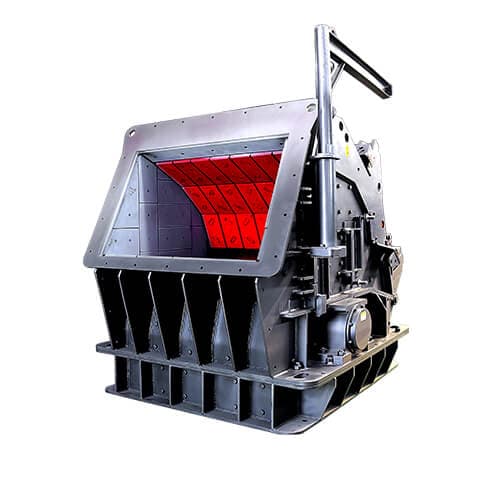

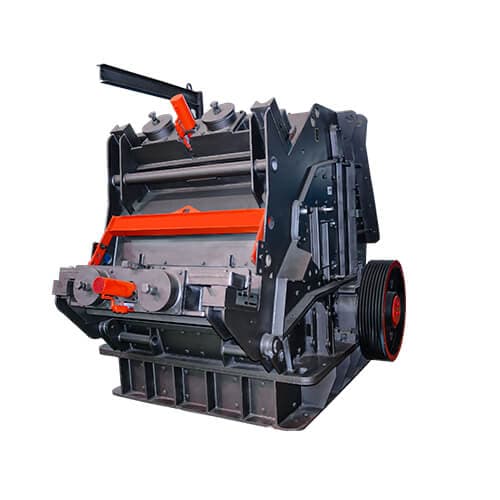

New Hydraulic Impact Crusher

Model: PS series impact crusher

New hydralic impact crusher can crush all kinds of coarse,medium and fine materials with feed size not exceeding 580MM and compressive strength not exceeding 350MPa, such as river pebbles,granite，basalt，iron ore，limestone，quartz，diabase，marble shale，bluestone coal，pebbles，construction waste

Power

90-560kw

Processing Power

100-700t/h

Feed size

600-1000mm

Material:

river pebbles，granite，basalt，iron ore，limestone，quartz，diabase，marble shale，bluestone coal，pebbles，construction waste

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

The impact crusher is the latest generation of impact crusher developed by our company. It adopts the latest manufacturing technology, special structural design, the finished product is cubic, no tension and crack, the grain shape is quite good, and it can crush various coarse and medium materials with the feed size not exceeding 500mm and the compressive strength not exceeding 350MPa. It is widely used in various ore crushing, railway, highway, energy, cement, chemical, construction and other industries. Our company's series of impact crusher are divided into two series: two-chamber and three-cham- ber. The unique structure adopts seamless connection, high chrome hammer and special impact lining. It simplifies the crushing process and use low energy. The finished product is cube; The particle size can be adjusted.

ADVANTAGE

High-performance,Wide range of application suitability

Novel structure, reliable performance

Convenient cleaning-up

Easy maintenance and operation

WORKING PRINCIPLE

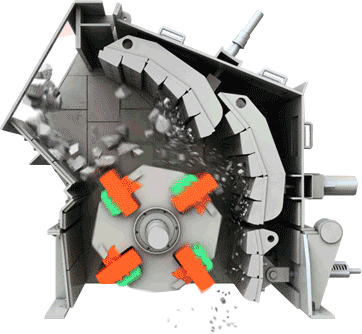

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Model	Adjustable range of outlet(mm)	Feed size (mm)	Processing Power(t/h)	Power (kw)
PS-1010	20-100	600	100-200	90-110
PS-1210	20-100	900	140-285	110-160
PS-1214	20-100	900	200-400	160-200
PS-1317	20-200	950	250-500	200-315
PS-1420	20-200	1000	400-600	220*2
PS-1620	20-200	1000	550-700	280*2
