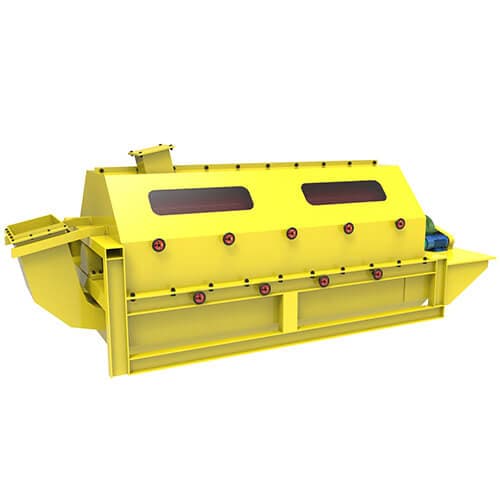

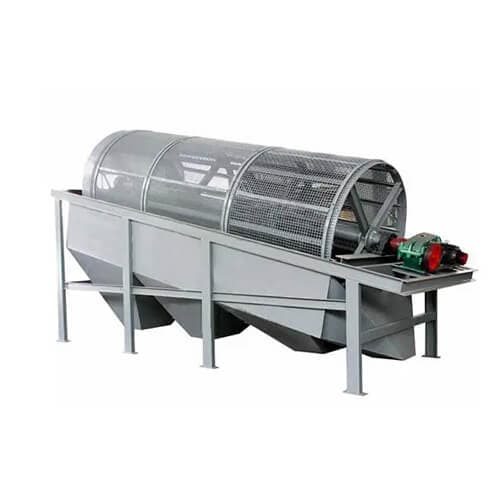

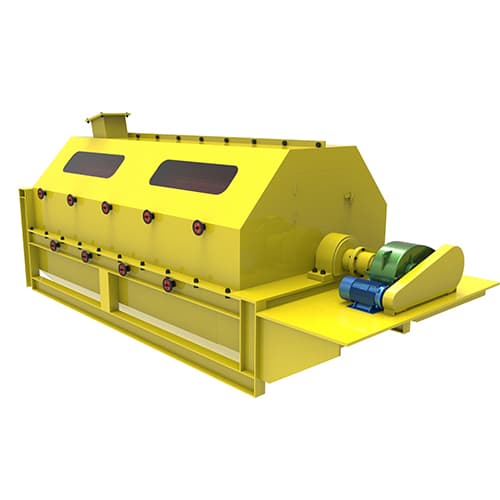

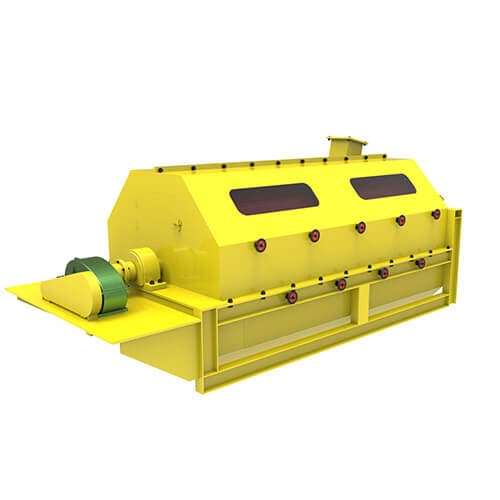

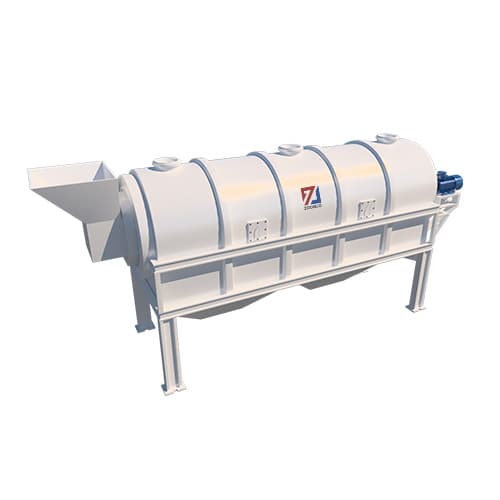

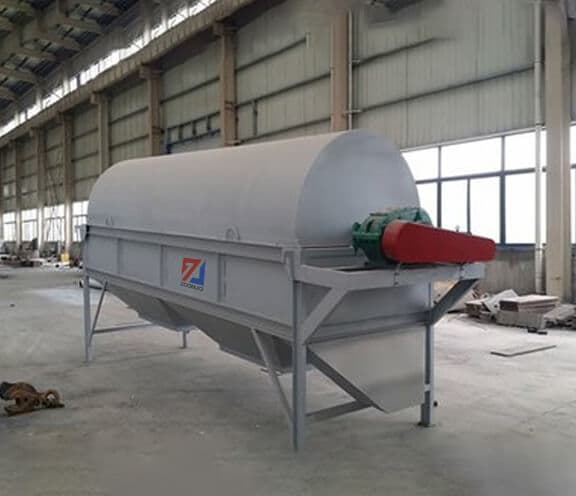

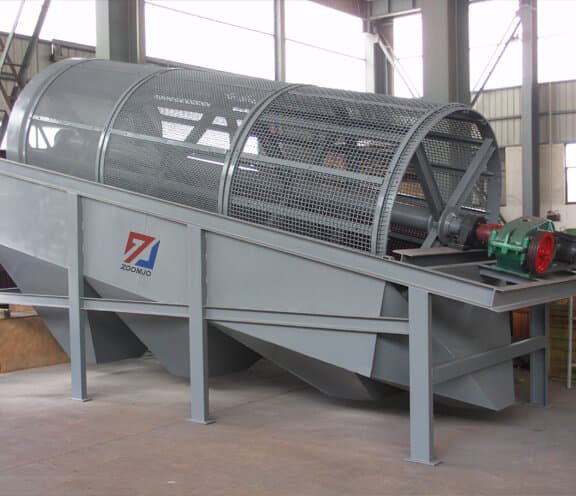

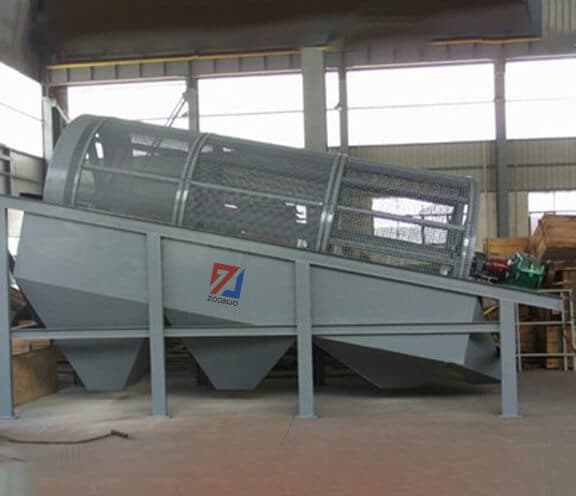

Rotary screen

Model: Rotary screen

Rotary screen machine is also called trommel screen or drum screen. It provides a simple, efficient and economical solution to view a wide range of materials.Rotary screen is applied in metallurgy, mining, chemical, coal, building materials and other industries.

Screening size

50-150 mm

Sieving precision(mesh)

＜100

Layer

1-3

Material:

Coal, crushed lime, limestone, sand, quartz sand,aggregates, cement, fertilizer, woodchips etc.

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

Cement, Concrete, River Sand Rotary Trommel Vibrating Screen Machinery used to separate materials by size, for example, separating the biodegradable fraction of mixed municipal waste or separating different sizes of mulch or crushed stone. Production rates can be vary from 20 to 30 yards an hour to several hundred yards of material an hour based on number of factors described in this article.

ADVANTAGE

Heavy duty trommel drum with lifters at the front to facilitate material break up.

Screen replaceable for different mesh sizes ;

Multiple screen sizes ;

Easily changed screen plates ;

WORKING PRINCIPLE

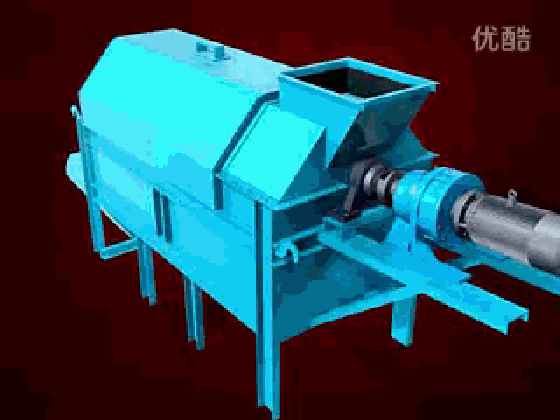

Rotary screen is consisting of five parts: drum, frame, hopper, reducer and motor. After the material goes into the drum, it is screened along with the rotation of drum. At same time, the larger size materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.


Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Model	Capacity(t/h)	Power (kw)	Screen Diameter(mm)	Screen Length(mm)	Discharge Size(mm)	Input Size (mm)	Dimension (L×W×H) (mm)	Weight (kg)
GTS1015	50	3	1000	1500	0~100	≤300	2600×1400×1700	2200
GTS1020	100	4	1000	2000			3390×1400×2140	2800
GTS1225	160	5.5	1200	2500			4146×1600×2680	4200
GTS1530	250	7.5	1500	3000			4460×1900×2820	5100
GTS1545	350	11	1500	4500		≤400	5960×1900×3080	6000
GTS1848	450	15	1800	4800			6500×2350×4000	7500
