Coal, crushed lime, limestone, sand, quartz sand,aggregates, cement, fertilizer, woodchips etc.

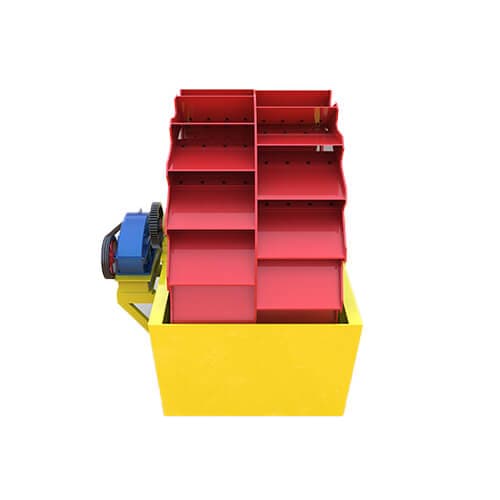

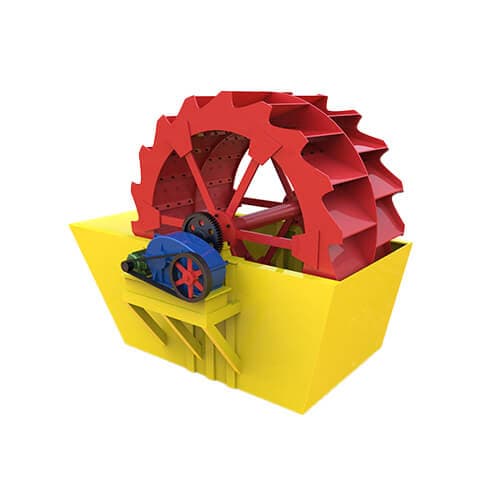

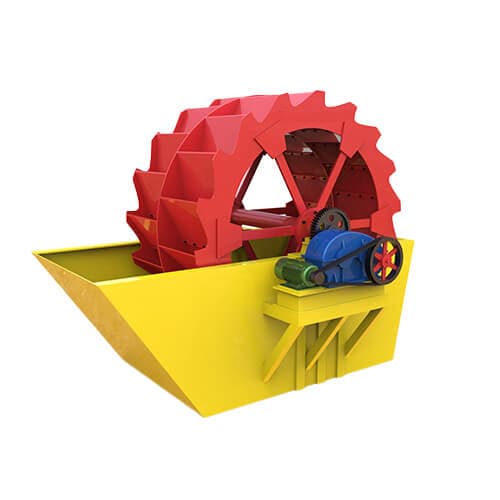

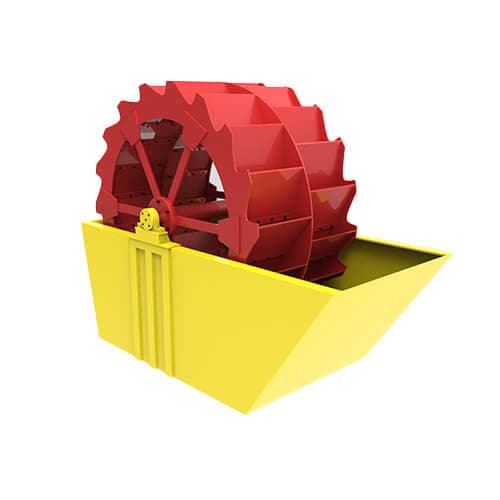

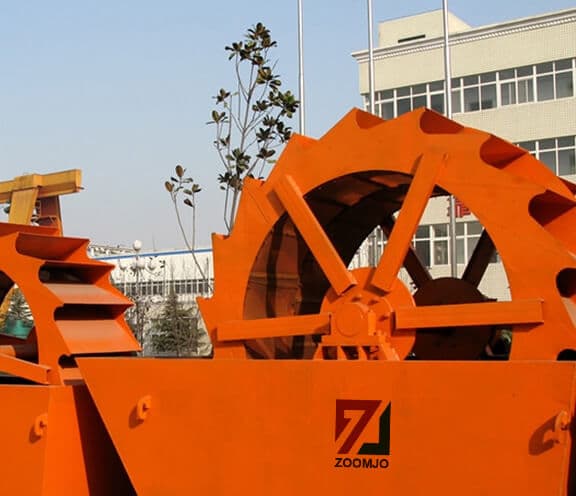

Bucket wheel sand washing machine, which also can be called wheel sand washer,are applicable to the construction site, gravel plant, hydropower station, concrete dam site, sand post and telegraph pole factory requires and casting " seven 0" sand, glass factory quartz sand and oil filling pressure sand washing, grading and dehydration.
Bucket wheel sand washing machine is of simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
When bucket wheel sand washing machine is used for cleaning sand in quarries, it has many advantages compared with the traditional spiral one.
There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards.
There are no other wearing parts except the screen mesh.

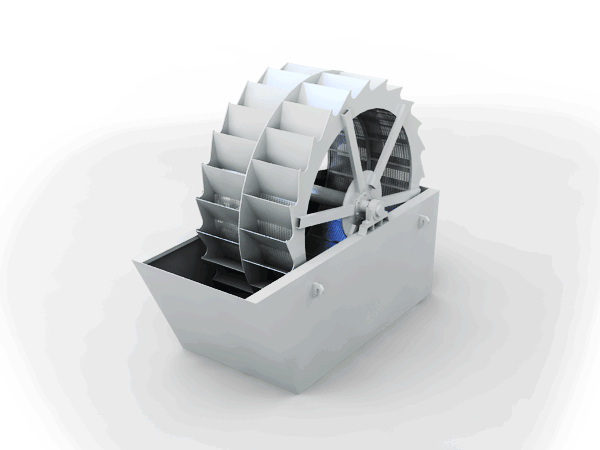

Bucket wheel sand washing machine drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.
CHAT ONLINE
| Model | Rerl Diameters （mm） | Feed-in Size（mm） | Capacity（t/h） | Motor Model | Power（kw） | Weight（t） | Dimensions(L W H)（mm） |
| XSD2610 | 2600 | ≤10 | 20-50 | Y160L-8 | 7.5 | 2.68 | 3321×2312×2683 |
| XSD2816 | 2800 | ≤10 | 30-70 | Y180L-8 | 15 | 5.3 | 3810×2820×2883 |
| XSD3016 | 3000 | ≤10 | 50-100 | Y200L-8 | 15 | 6.5 | 3830×2972×3200 |
| XSD3620 | 3600 | ≤10 | 80-150 | Y255S-8 | 18.5 | 9.8 | 4456×3479×3688 |
