Refractory materials, cement, quartz sand, steel sand, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate, etc.

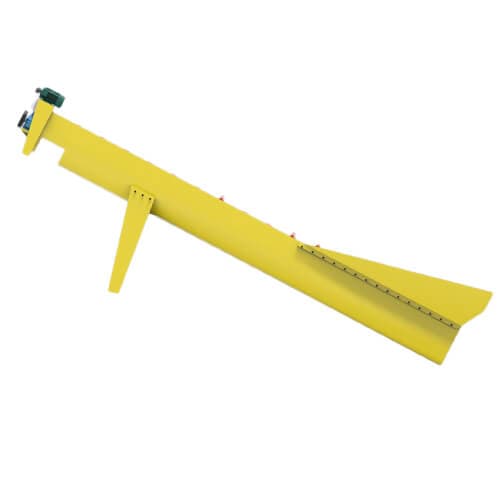

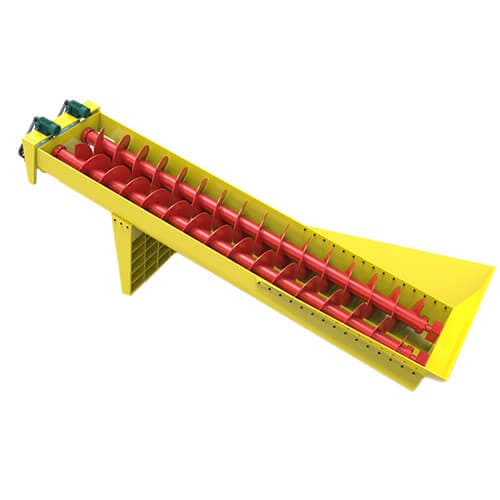

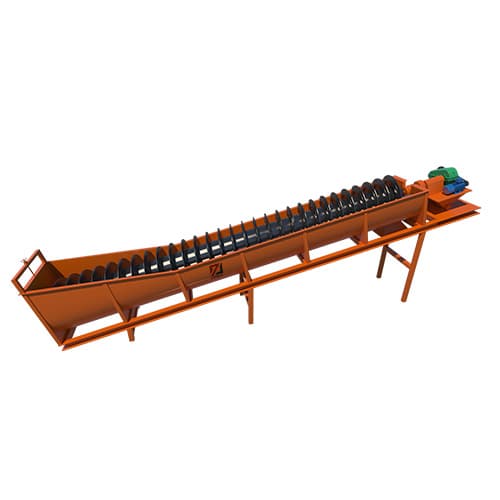

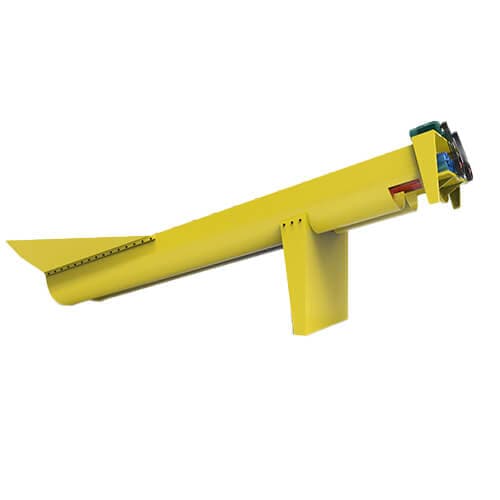

Spiral sand washing machine is a kind of sand washing machine. It mainly stirs the sand and gravel materials through the screw device in the equipment, so that the soil and water in the sand and gravel materials are mixed and discharged from the flow port on the equipment, while the sand and gravel materials are Under the action of the screw device, it is gradually screened and discharged from the discharge port at the top, so as to realize the cleaning and screening effect of sand and gravel.
Long spiral body and good sealing design.
Simple structure, powerful treatment capacity.
Easy to maintain and replace used parts.
Large processing capacity, stable operation, high cleaning efficiency, factory direct sales, low costs.

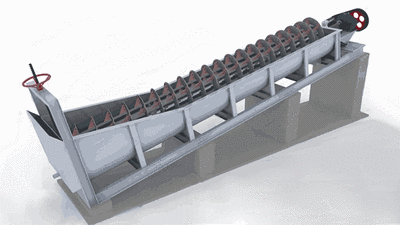

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
CHAT ONLINE
| Model | XS0745 | XS1050 | XS1254 | XS1554 | XS1575 | XS1875 |
| Screw diameter(mm) | 750 | 1000 | 1200 | 1500 | 1500 | 1800 |
| Length(mm) | 4500 | 5000 | 5400 | 5400 | 7200 | 7200 |
| Spiral speed(r/min) | 18 | 18 | 16 | 16 | 14 | 12 |
| Capacity(t/h) | 5-20 | 10-30 | 30-50 | 50-80 | 50-80 | 80-150 |
| Motor dower(kw) | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Dimension Length(m) | 5-7 | 5-7 | 5-7 | 5-7.5 | 5-9 | 5-9 |
| Dimension Width(m) | 0.8 | 1.25 | 1.44 | 1.85 | 1.85 | 2.1 |
| Dimension Height(m) | 1.5 | 2.2 | 2.4 | 2.8 | 2.8 | 3.2 |
