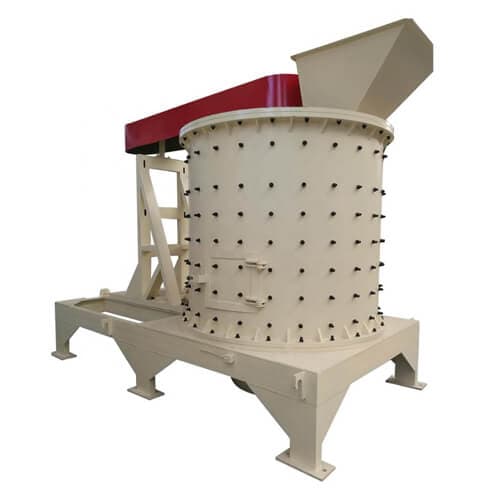

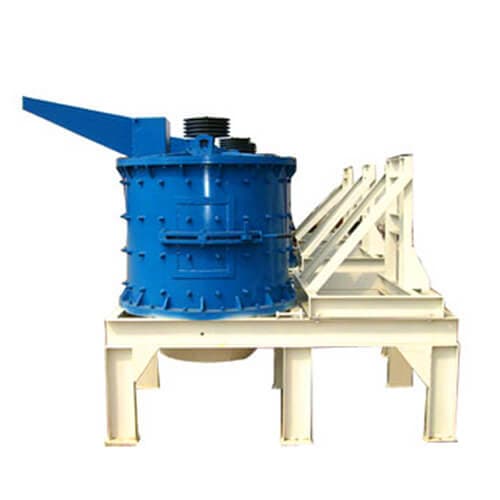

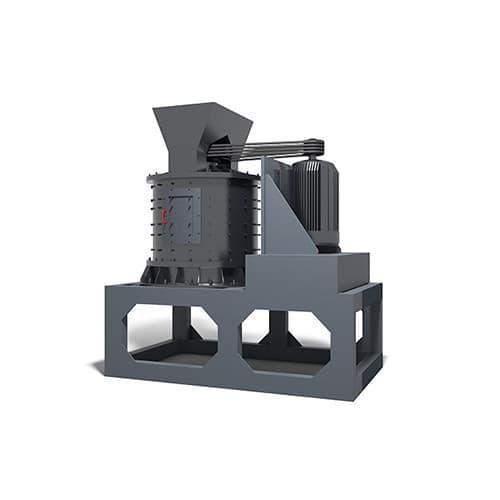

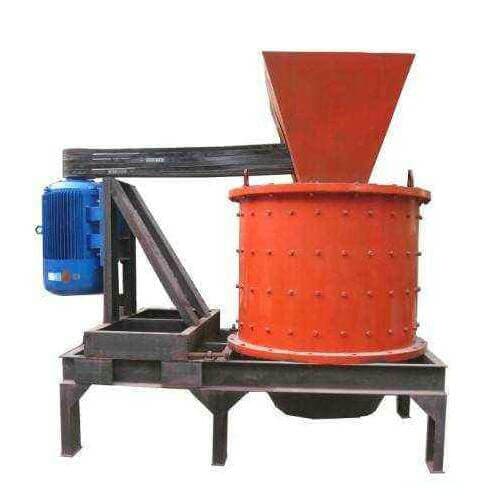

Vertical complex crusher

Model: Vertical complex crusher

Vertical complex crusher is a new kind of machine for fine crushing and coarse mill,which has combined crushing technology home and abroad and improved the main reference.It has many features,such as high crushing ratio,low energy cost,steady running,simple structure and easy to maintain.

Power

45-250 kw

Capacity

8-160t/h

Main shaft Rotating Speed

330-1350rpm

Material:

iron ore,sandstone,gypsum,blast furnace slag,coal gangue,lump and other medium-hard ore

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

The complex crusher is a kind of fine crushing equipment with large crushing ratio. It has no screening grate in the crushing cavity.The particle size of the material can be adjusted arbitrarily, and is not affected by the wear of the plate hammer and the lining plate. Without the screen grate, it is not easy to block when the material has high moisture and mud rate; the elastic adjustment mechanism can be used to automatically discharge the unbreakable material. It will not cause equipment damage; the bearing is horizontally arranged and has a long service life, which can crush materials with high temperature (such as cement clinker).

ADVANTAGE

Simple structure and reasonable, low operating cost .The use of stone beating principle, low wear rate.

High crushing rate and energy saving. Smooth operation.

With fine crushing and coarse grinding functions.

Less work noise and less dust pollution.

WORKING PRINCIPLE

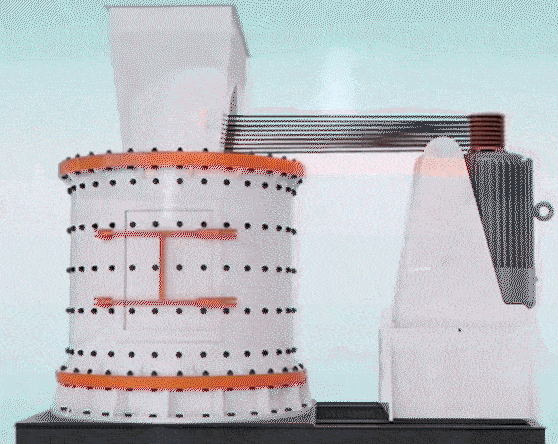

After the material fall into the crushing chamber, firstly will be thrown towards the reaction liner by feed tray at high speed, then fall into the space between the hammerhead and reaction liner. The material will become smaller from the big size by heating, crushing , grinding of hammerhead, and finally, crushed into small granule and discharged from the crusher. 立式复合破碎机原理备用.gif

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Model	Feed Size (mm)	Discharge Size (mm)	Main shaft Rotating Speed (rpm)	Capacity (t/h)	Power (kw)
PFL-750III	≤100	≤3 (70-90%)	800-1350	44793	45
PFL-1000III	≤120	≤3 (70-90%)	650-980	15-30	55
PFL-1250III	≤150	≤3 (70-90%)	510-770	35-45	90
PFL-1500III (II IX)	≤180	≤3 (70-90%)	430-640	50-70	132
PFL-1750III (II IX)	≤200	≤3 (70-90%)	420-540	70-100	160
PFL-2000III	≤220	≤3 (70-90%)	360-540	90-120	200
PFL-2300III	≤240	≤3 (70-90%)	330-450	120-160	250
