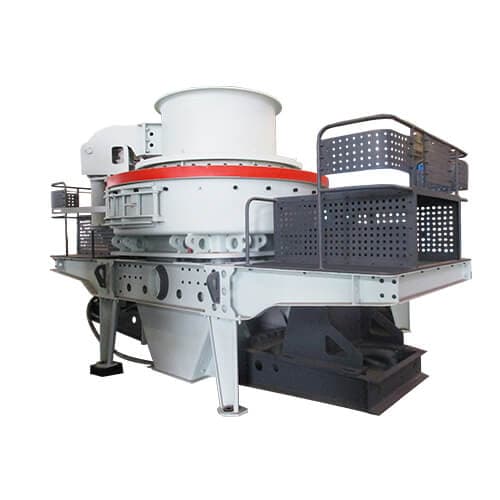

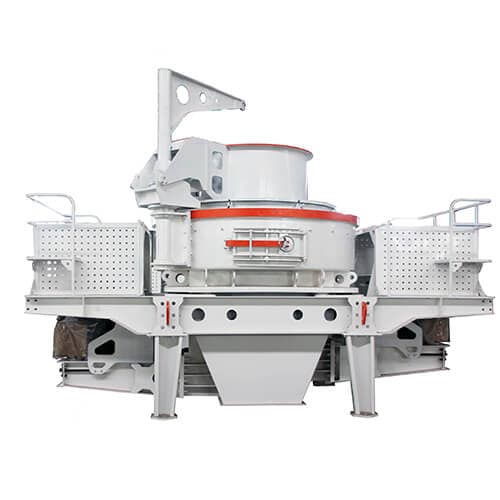

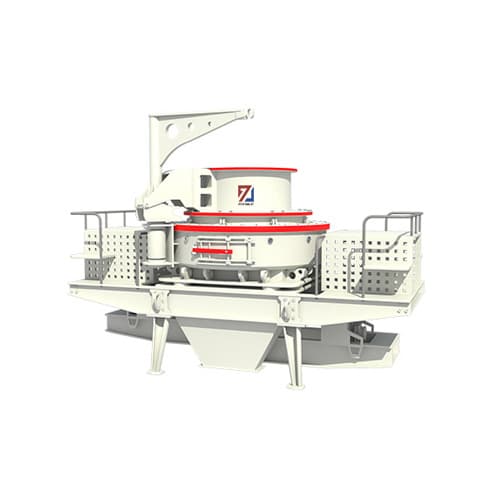

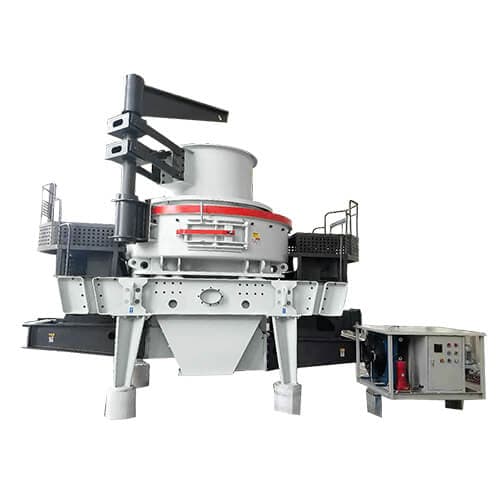

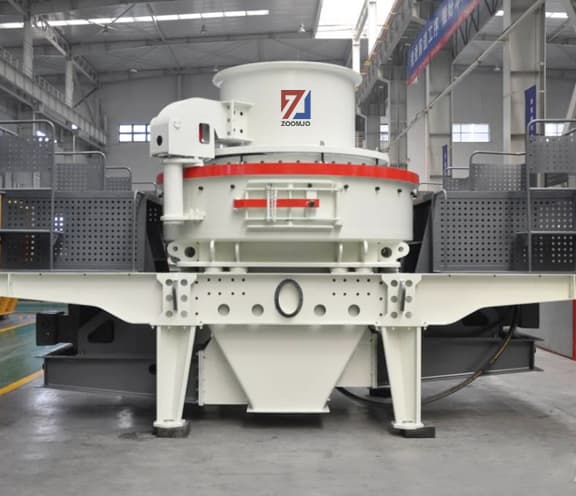

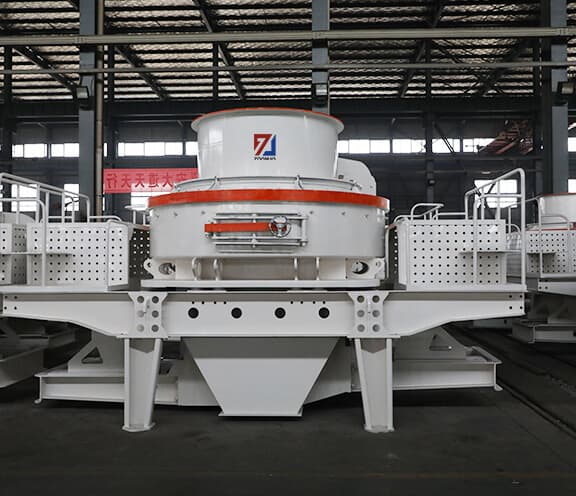

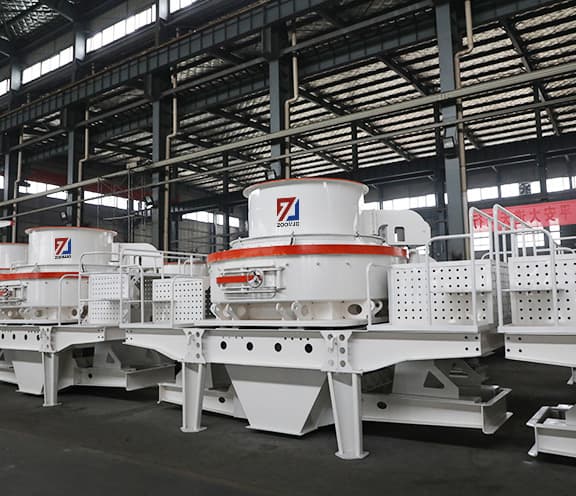

Vertical Shaft Impact Crusher

Model: Vertical Shaft Impact Crusher

Vertical shaft impact crusher is also called sand making machine,artificial sand making machine or sand crusher. Impact sand making machine is widely used for fine crusher and coarse grinding of metal and non metal ores, cement, refractory material, grinding material, glass raw material, building aggregates, artificial sand and all kinds of metallurgical slags.

Motor Power

150-630kw

Rotation speed

900-1700r/min

Feed at center capacity

60-480t/h

Material:

limestone, river stone, pebble, basalt, granite, iron ore, metal ore and other non-ferrous ores, construction aggregates and other medium and strong abrasive materials with a hardness of ≦250Mpa

GET QUOTE

CHAT ONLINE

Email:info@zoomjo.com

PRODUCT INTRODUCTION

Impact sand making machine is the latest technology introduced by our company.It is a perfect combination of professional crushing technology and mechanical manufacturing. It is a full embodiment of new technology and new technology.It cannot only provide the highest quality sand and gravel aggregate for highways and railways,high-rise buildings,municipal works,hydropower dam construction,port terminals,concrete mixing stations,etc, and is undisputedly the core of the mechansm sand industry and stone shaping industry device

ADVANTAGE

Deep cavity type roter go through optimized design, can increase the materials thruput by about 30%

Use rhombus impact block, to avoid damage vertical plate after materials impact and wear

Dual-use bulk trays, simple operation,easy conversion to achieve two feeding method.

On the bottom of the spindle,special sealing structure can ensure that no oil seal and not leaking.

WORKING PRINCIPLE

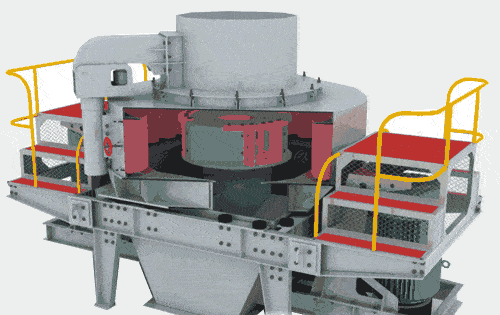

Impact crusher is a kind of crushing machine that uses impact energy to crush materials. When the machine works, driven by the motor, the rotor rotates at a high speed. When the material enters the plate hammer action area, it collides with the plate hammer on the rotor and is crushed again, and then thrown to the impact device, and then bounces back from the impact lining plate to the plate hammer action area for re crushing. This process is repeated. The material enters the second and third impact chambers from large to small for repeated crushing, Until the material is crushed to the required particle size, it is discharged from the discharge port. Adjusting the gap between the counterattack frame and the rotor can change the discharge particle size and shape of materials.

Production Line Solution

Calcite

solution

Weathered fossil

solution

Limestone

solution

Dolomite

solution

Granite

solution

River Pebble

solution

Basalts

solution

Sand buns

solution

Processing Materials According to the material you process, we can customize the solution

CHAT ONLINE

TECHNICAL PARAMETER

Model	Capacity(t/h)		Feed size(mm)		Rotation speed(r/min)	Motor Power(KW)
	Sacade falls and center feeding	Feed at center	Soft material	Hard material
VX7615	130-180	60-140	35	30	1300-1700	150
VX8522	200-260	120-200	40	35	1200-1500	200
VX9532	300-380	180-280	45	40	1100-1400	320
VX1145	400-460	250-360	50	45	1000-1300	440
VX1150	550-640	340-360	55	45	1000-1300	500
VX1263	650-850	400-480	60	50	900-1200	630
