River stone, Limestone,Granite,Shale
River stone, Limestone,Granite,Shale

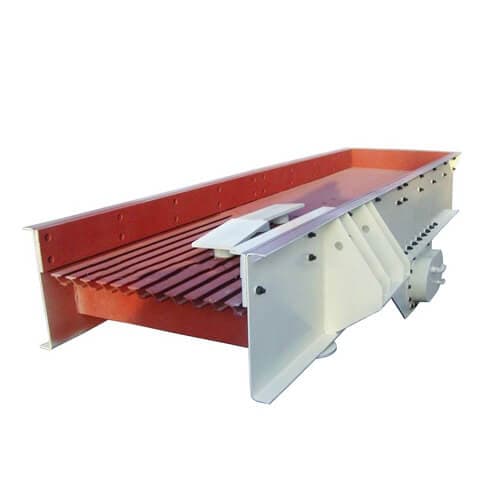

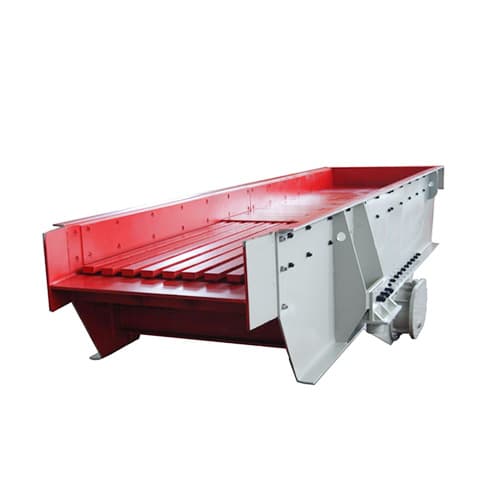

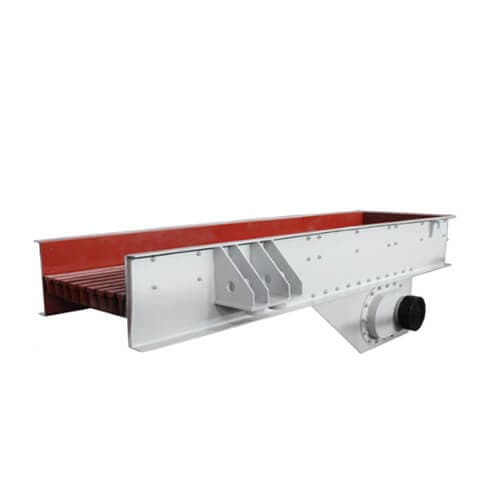

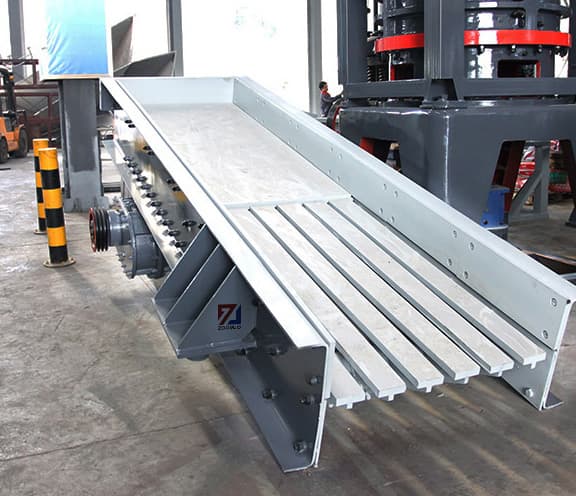

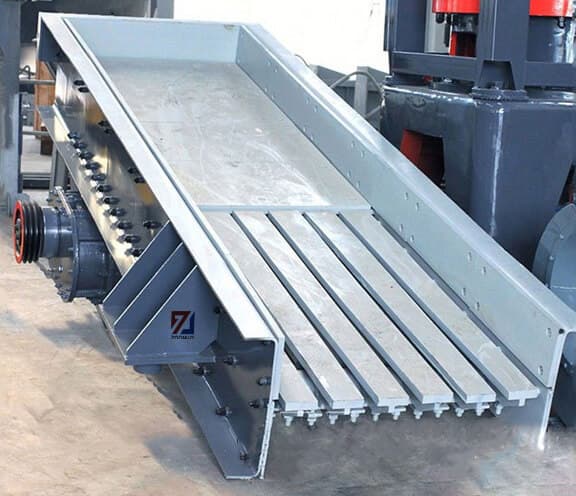

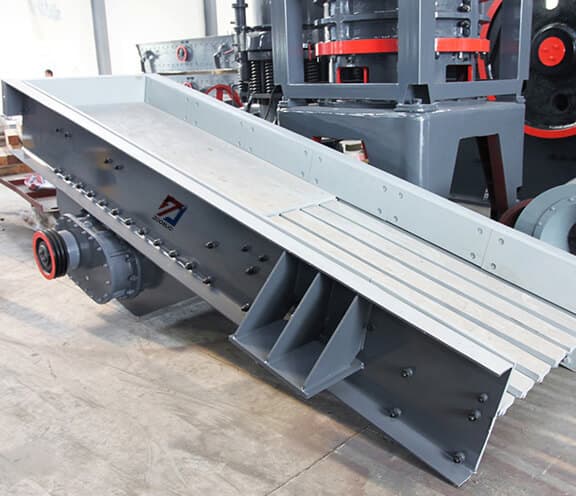

High quality mining vibrating feeder machine in the work process can make the massive,granular materials from the storage bin in uniform,timing,continuously fed into feeding device,in the sand production line,it can feed materials to crushing machine continuously and uniform,and screening rough materials,widely used in metallurgy,mining,mineral processing,building materials,chemical industry,abrasive and other industries crushing and screening combination equipment.
It vibrates calmly, works reliably with a long life-span.Its structure is simple and works stably, and easy to adjust and install.
Its stimulating vibrancy power can be adjusted, while the flux can be changed and controlled.
It is convenient and stable to adjust.It can avoid powder and dust pollution when using the closed structural body.
Vibrating feeder's vibrating electrical engine is stimulating vibrancy fountain, with low noise, low cost of electricity, and good adjusting capability, without rushing phenomenon.

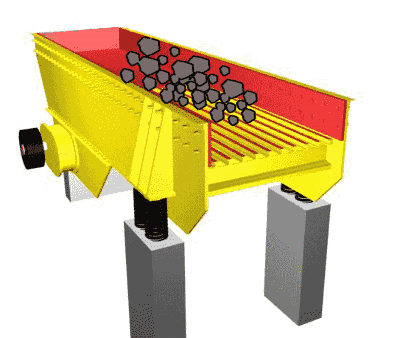

1. Vibrating feeder is designed based on the vibration principle.

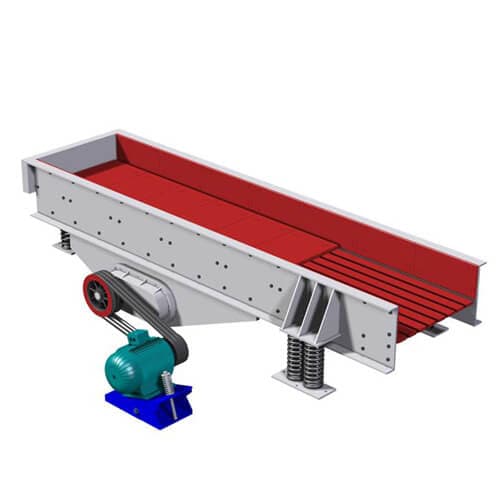

2. It creates vibration when the materials are passed into the funnel and screen. Vibrating feeder is made up of vibrating frame, vibrator, spring, motor and motor vibrating accessory.
3. The vibrator contains two fixed eccentric shafts with jogged gears. And they create a high aptitude to vibrate the equipment.
CHAT ONLINE
Model | Trough Size (mm) | Max Feeding (mm) | Capacity (t/h) | Power (kw) | Motor Model | Machine Size (mm) |
GZD 800x1800 | 1800×800 | 300 | 30-80 | 6-1.5×2 | 2200×1100×800 | |
GZD 1200x2000 | 2000×1200 | 300 | 80-500 | 6-2.2×2 | 2000×1200×855 | |
GZD 850x3000 | 3000×900 | 300 | 40-100 | 6-2.2×2 | 3050×1430×1550 | |
GZD 960x3800 | 3800×960 | 500 | 90-200 | 6-11 | Y160L-6/11 | 3880×2240×1880 |
GZD 1100x4200 | 4200×1100 | 580 | 150-350 | 6-15 | Y180L-6/15 | 4300×2450×2010 |
GZD 1100x4900 | 4900×1100 | 580 | 180-380 | 6-15 | Y180L-6/15 | 4980×2450×2010 |
GZD 1300x4900 | 4900×1300 | 750 | 250-450 | 6-22 | Y200L2-6/22 | 4980×2710×2050 |
