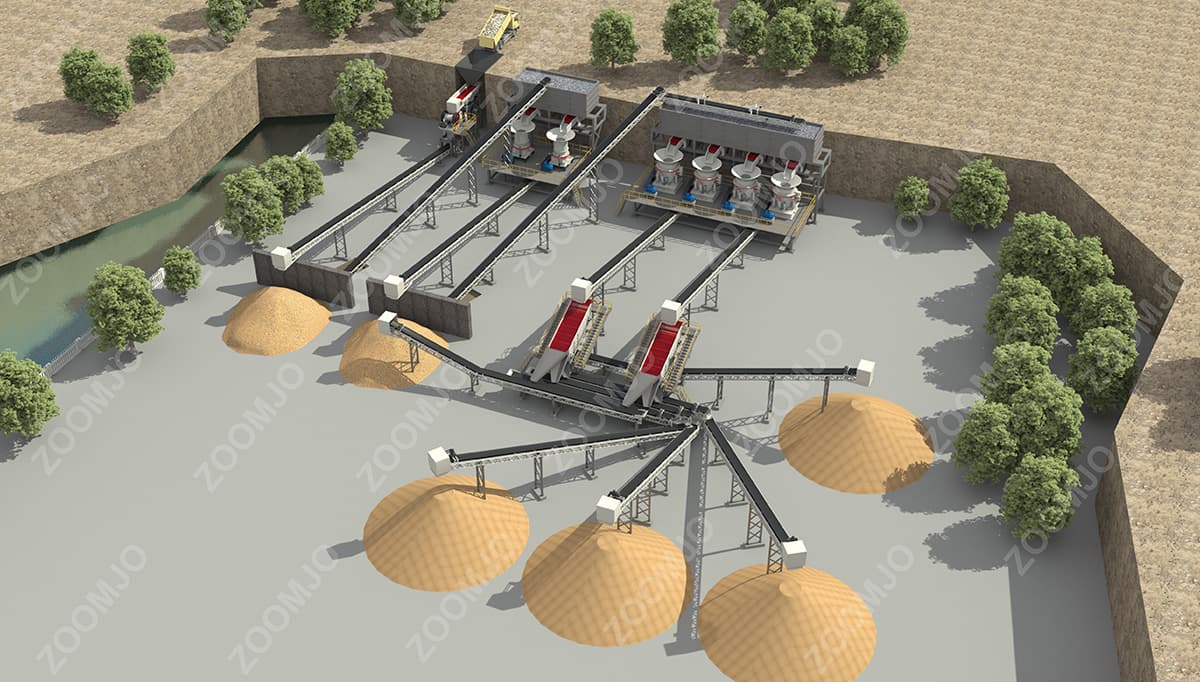

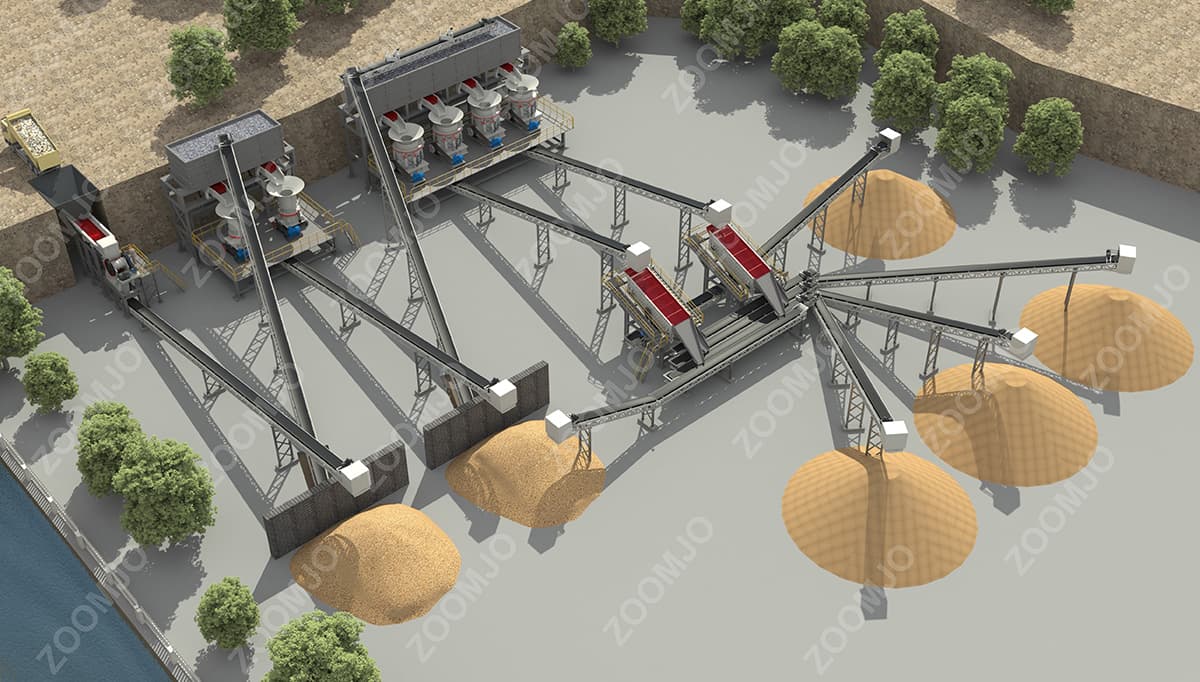

1. The raw materials are fed into the 50m³ rice silo by truck or loader.

2. The vibrating feeder evenly transports the raw materials in the silo to the jaw crusher

3. The jaw crusher crushes the raw materials below 500-800mm to about 100-300mm, and is transported by the belt conveyor to the silo above the single-cylinder cone crusher, and then the silo is evenly transported to the feeding port of the single-cylinder cone crusher .

4. The single-bar cone crusher crushes the material to a 16-64mm mixture, which is transported by the belt conveyor to the multi-cylinder hydraulic cone crusher. The main function of the cone crusher is to shape the finished product, which is mostly multi-sided and three-dimensional, reducing needle-shaped, fragmented The proportion of type, improve the finished product specifications.

5. The multi-cylinder hydraulic cone crusher crushes the material to 0-32 mixed material and transports it to the vibrating screen, divides the mixed stone into four specifications of finished stone through the aperture of the screen, and transports it to the respective finished product piles.
