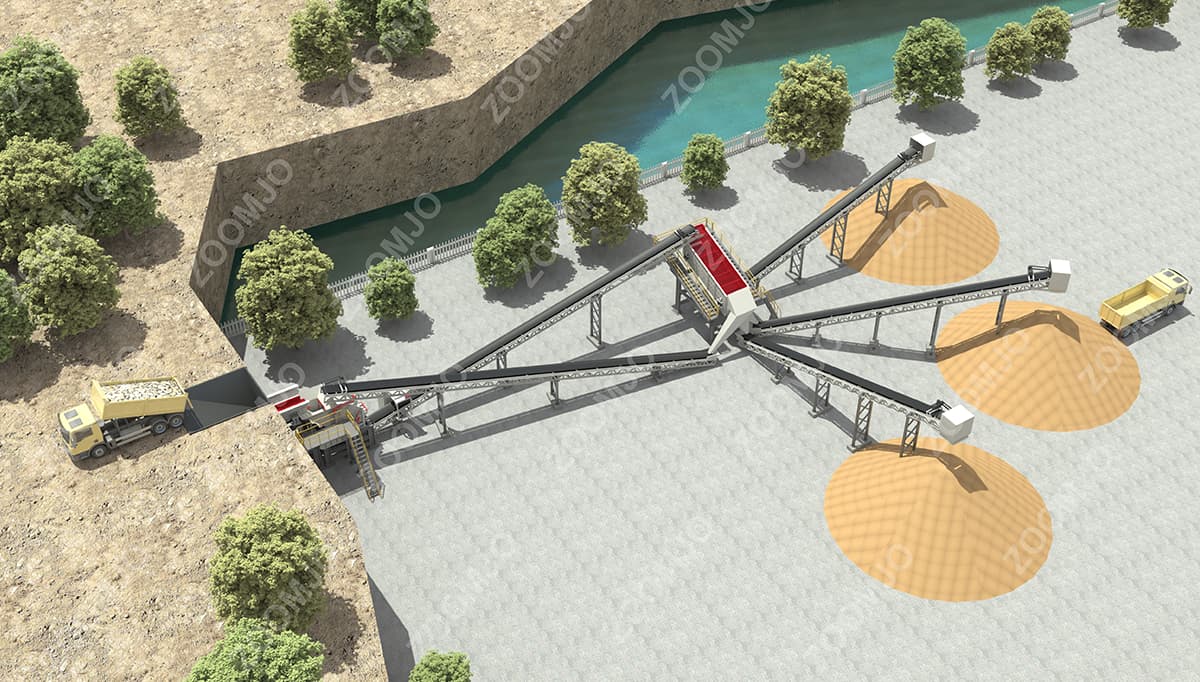

1. The raw material river pebbles enter the 50m³ Hopper by truck or loader.

2. The vibrating feeder evenly transports the raw materials in the Hopper to the jaw crusher

3. The jaw crusher crushes the raw materials below 500mm to about 100mm, and transported by the belt conveyor to the single cylinder cone crusher.

4. The single cylinder cone crusher crushes the material to 0-45mm mixture, which is transported by the belt conveyor to the impact crusher.The main function is to reshape the finished product, present it as a multi-sided three-dimensional, and reduce the proportion of needle type and sheet type.

5. The belt conveyor transports the mixed material to the vibrating screen, and separate the mixed material into four types of finished stone through the vibrating screen.

6. The material larger than 30mm returns to the impact crusher, and is repeatedly crushed to meet the requirements of the finished product.

7.0-5mm sand produce by washed and dewatered in an integrated machine to remove soil and impurities and moisture. it is used as high-standard machine-made sand.
