SOLUTIONS

THE PRODUCTION LINE PROCESS

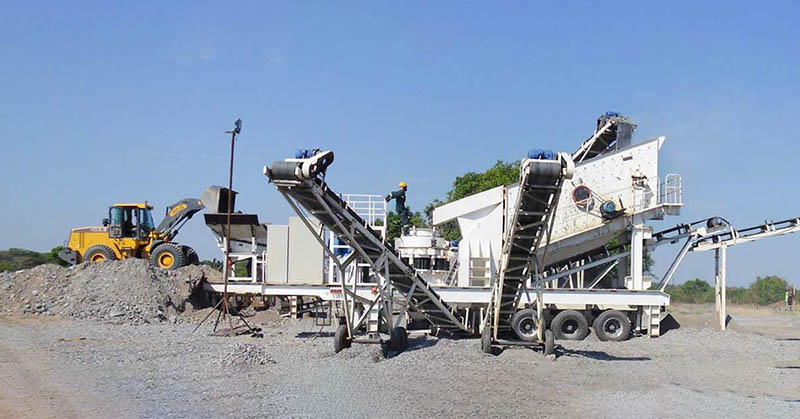

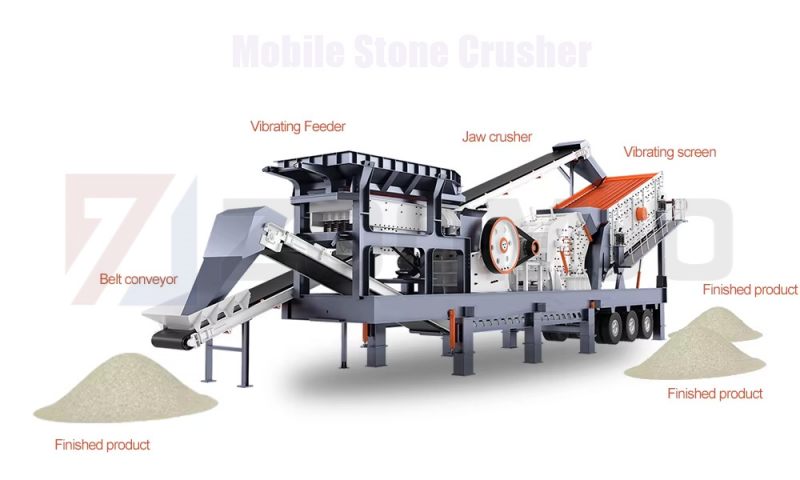

① The raw pebble is sent to the vibrating feeder by truck or loader or dump truck.

② The vibrating feeder evenly conveys the raw materials to the impact crusher.

③ The impact crusher crushes the raw materials below 900mm to below 100mm, and is transported by the discharge belt conveyor to

the peripheral long belt conveyor, and then transported to the vibrating screen.

④ 0-10mm finished product, 10-20mm finished product and 20-31.5mm finished product are conveyed by belt conveyor to three finished

product piles after sieving by vibrating screen.

⑤ Materials larger than 31.5mm are sent to the vibrating feeder by the return belt, and then conveyed to the crusher for crushing again. crusher machine (2).png

↓↓

RELATED PRODUCTS

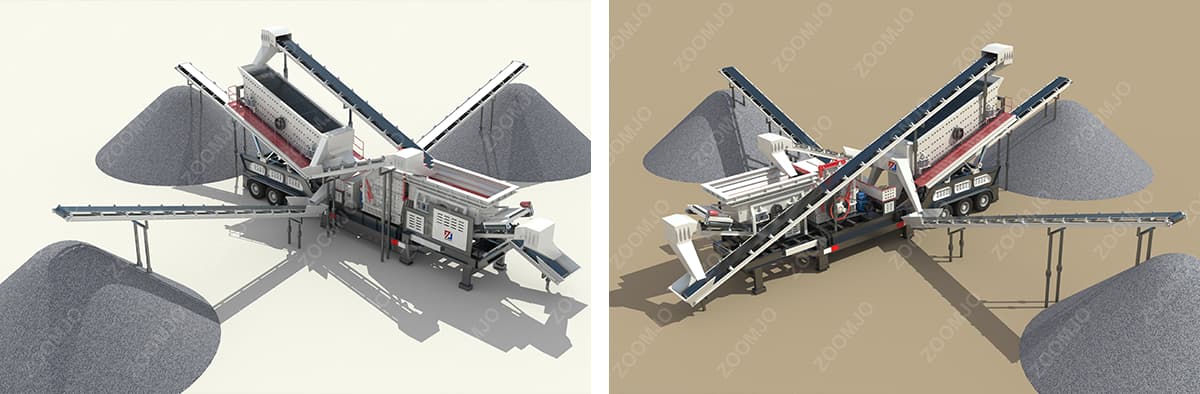

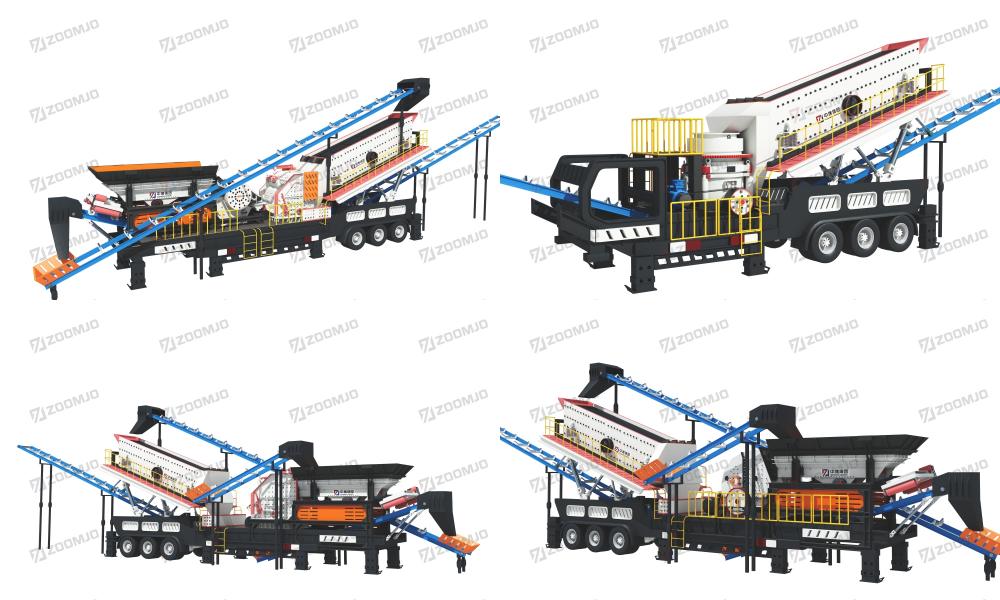

Mobile Impact crusher

Mobile impact crushers are widely used in large construction waste disposal sites, and can also be used in cement, mining, sand and gravel industries

Crawler impact crusher

Crawler-type mobile crushing station is a kind of high-efficiency crushing equipment. It adopts crawler-type vehicle chassis to walk, with advanced technology and complete functions. It has excellent work station mobility and work site adaptability.

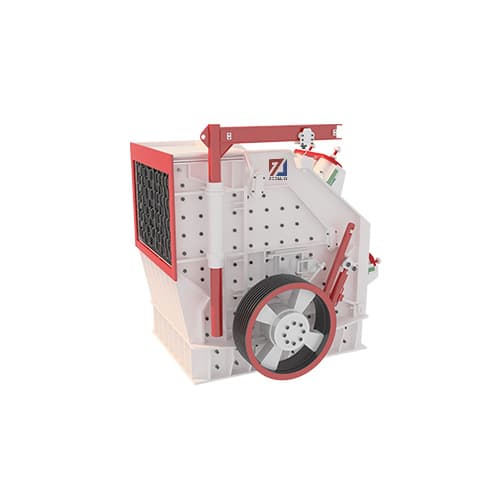

Impact crusher

Impact crushers are used in various ore crushing, railway, highway, energy, cement, chemical, construction and other industries. The size of the discharge particle size can be adjusted, and the crushing specifications are diversified.

New Hydraulic Impact Crusher

New hydralic impact crusher can crush all kinds of coarse,medium and fine materials with feed size not exceeding 580MM and compressive strength not exceeding 350MPa, such as river pebbles,granite，basalt，iron ore，limestone，quartz，diabase，marble shale，bluestone coal，pebbles，construction waste
